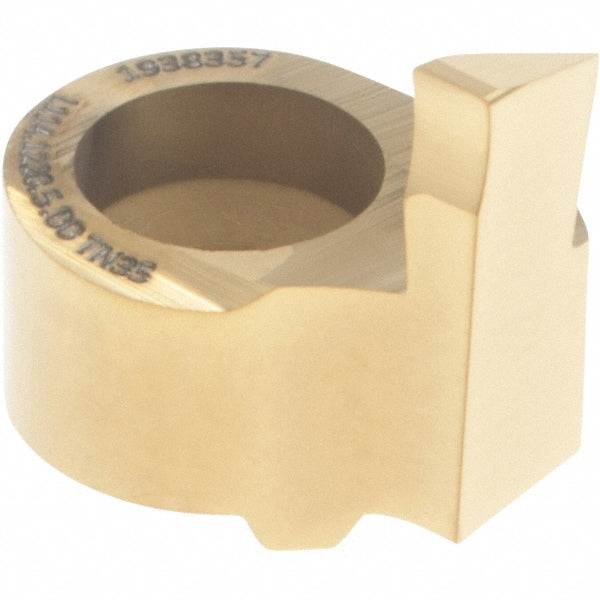

Grooving Insert: 1141220 TN35, Solid Carbide
Item #: 88484324
Brand: HORN
Model #: L1141220500TN35
Product Specifications
| Insert Style | 114 |
| Cutting Width (Decimal Inch) | 0.0790 |
| Insert Hand | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Insert Material | Carbide |
| Manufacturer Grade | TN35 |
| Full Radius | No |
| Corner Radius (Decimal Inch) | 0.0080 |
| Rake | Positive |
| Measurement Type | Decimal Inch |
| Insert Holding Method | Screw |
| Insert Size | 1220 |
| Material Grade | C5; C6 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.1500 to 0.2000 |
| Multi-use Tool | No |
| UNSPSC Code | 23242105 |
| Coating/Finish | TiN |
| Country of Origin | UNITED STATES |
