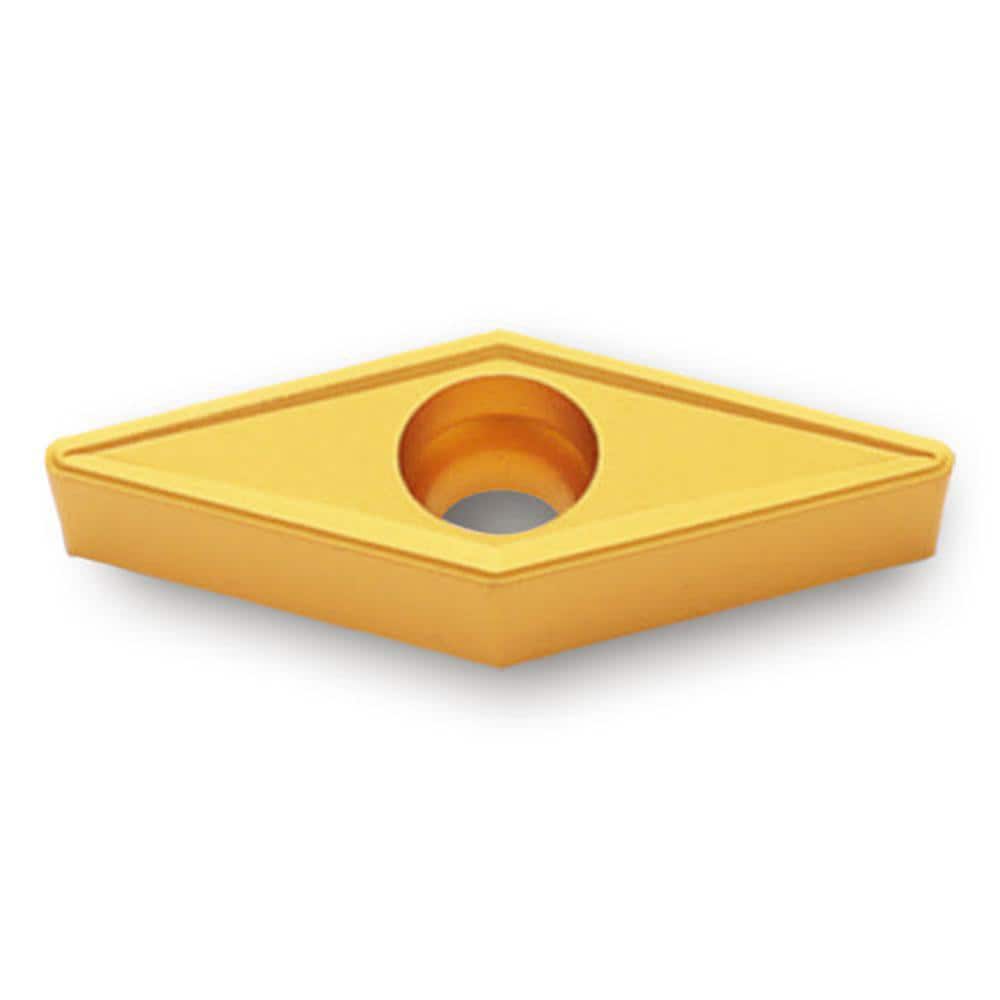

Turning Insert: VBMT331MT TT8115B, Carbide
Item #: 29826690
Brand: Ingersoll Cutting Tools
Model #: 6212384
Product Specifications
| ANSI Insert Code | VBMT331 |
| ISO Insert Code | VBMT160404 |
| Relief Angle | 5 |
| Insert Style | VBMT |
| Corner Radius (Decimal Inch) | 0.0160 |
| Included Angle | 35 |
| Manufacturer Grade | TT8115B |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Series | VBMT |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Material | Carbide |
| Insert Shape | V - Diamond (Rhombic) 35-Deg |
| Chip Breaker Operation | Medium Machining; Roughing |
| Grade Characteristics | Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | V |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Maximum Depth of Cut (Decimal Inch) | 0.1180 |
| Insert Holding Method | Screw |
| Clearance Code | B |
| Tolerance Code | M |
| Coating Process | CVD |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.6540 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Iso Code | VBMT160404MT TT8115B |
| Chip Breaker | MT |
| ANSI Size Code | 331 |
| ISO Size Code | 160404 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 331 |
