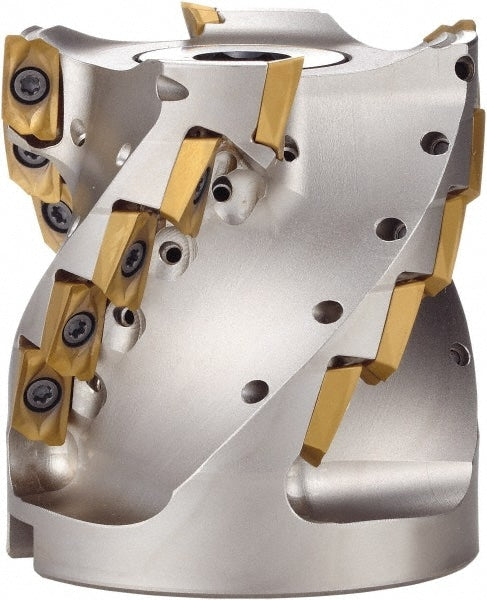

80mm Cut Diam, 32mm Arbor Hole Diam, 88mm Max Depth, Indexable Square-Shoulder Face Mill
Item #: 55704522
Brand: OSG
Model #: 7802852
Product Specifications
| Maximum Cutting Diameter (Decimal Inch) | 3.1496 |
| Maximum Cutting Diameter (mm) | 80.00 |
| Maximum Depth of Cut (mm) | 88.00 |
| Arbor Hole Diameter (mm) | 32.00 |
| Compatible Insert Size Code | ZDKT15... |
| Cutter Style | PSEL |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 0 |
| Series | 78028 |
| Overall Height (Mm - 5 Decimals) | 88.00 |
| Keyway Width (mm) | 14.40 |
| Hub Diameter (mm) | 76.00 |
| Keyway Depth (mm) | 8.00 |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 4 |
| Number Of Flutes | 4 |
| Maximum Cutting Diameter (Decimal Inch) | 3.1496 |
| Maximum Cutting Diameter (mm) | 80.00 |
| Maximum Depth of Cut (mm) | 88.00 |
| Arbor Hole Diameter (mm) | 32.00 |
| Compatible Insert Size Code | ZDKT15... |
| Cutter Style | PSEL |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 0 |
| Series | 78028 |
| Overall Height (Mm - 5 Decimals) | 88.00 |
| Keyway Width (mm) | 14.40 |
| Hub Diameter (mm) | 76.00 |
| Keyway Depth (mm) | 8.00 |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 4 |
| Number Of Flutes | 4 |
| MSC Part # | 55704522 |
| Mfr Part # | 7802852 |
| Country of Origin Country of Origin is subject to change | Japan |
