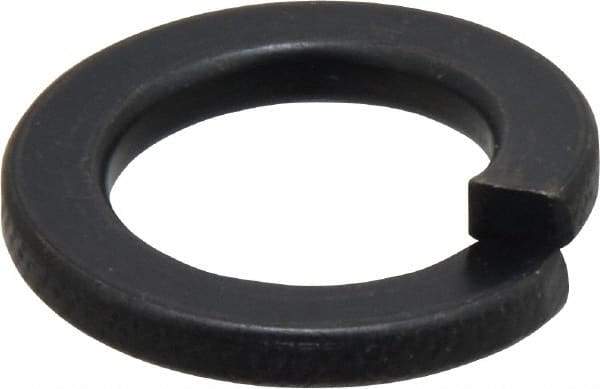

Value Collection - M20, 20.2mm ID, 4mm Thick Split Lock Washer - Steel, Uncoated, 20.2mm Min ID, 21.2mm Max ID, 33.6mm Max OD
Item #: 67497289
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Split lock washers have a split at one point along their outer diameter, which creates compression and tension to lock the nut in place. Split lock washers are used in high-vibration applications.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
| Product Specifications | |
|---|---|
| System of Measurement | Metric |
| Type | Split Lock Washer |
| Screw Size | M20 |
| Material | Steel |
| Finish/Coating | Uncoated |
| Inside Diameter (mm) | 20.20 |
| Thickness (mm) | 4.00 |
| Minimum Inside Diameter (mm) | 20.20 |
| Maximum Inside Diameter (mm) | 21.20 |
| Maximum Outside Diameter (mm) | 33.60 |
| Military Specification | Does Not Meet Military Specifications |
| Fastener Standard | DIN 127B |
