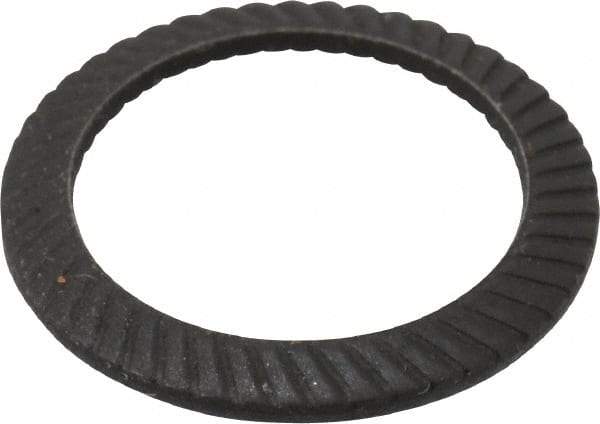

Value Collection - 1/2" Bolt, 0.512" ID, Steel, Belleville Disc Spring - 0.709" OD, 0.067" High, 0.043" Thick
Item #: 67495960
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs, also known as conical washers, have a curved shape that creates a spring-like action. They are used in applications that require heavy loads.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring |
| Bolt Size (Inch) | 1/2 |
| System of Measurement | Inch |
| Inside Diameter (Decimal Inch) | 0.5120 |
| Material | Steel |
| Outside Diameter (Decimal Inch) | 0.7090 |
| Thickness (Decimal Inch) | 0.0430 |
| Overall Height (Decimal Inch) | 0.0670 |
| Minimum Inside Diameter (Decimal Inch) | 0.5120 |
| Maximum Outside Diameter (Decimal Inch) | 0.7090 |
| Maximum Thickness (Decimal Inch) | 0.0430 |
