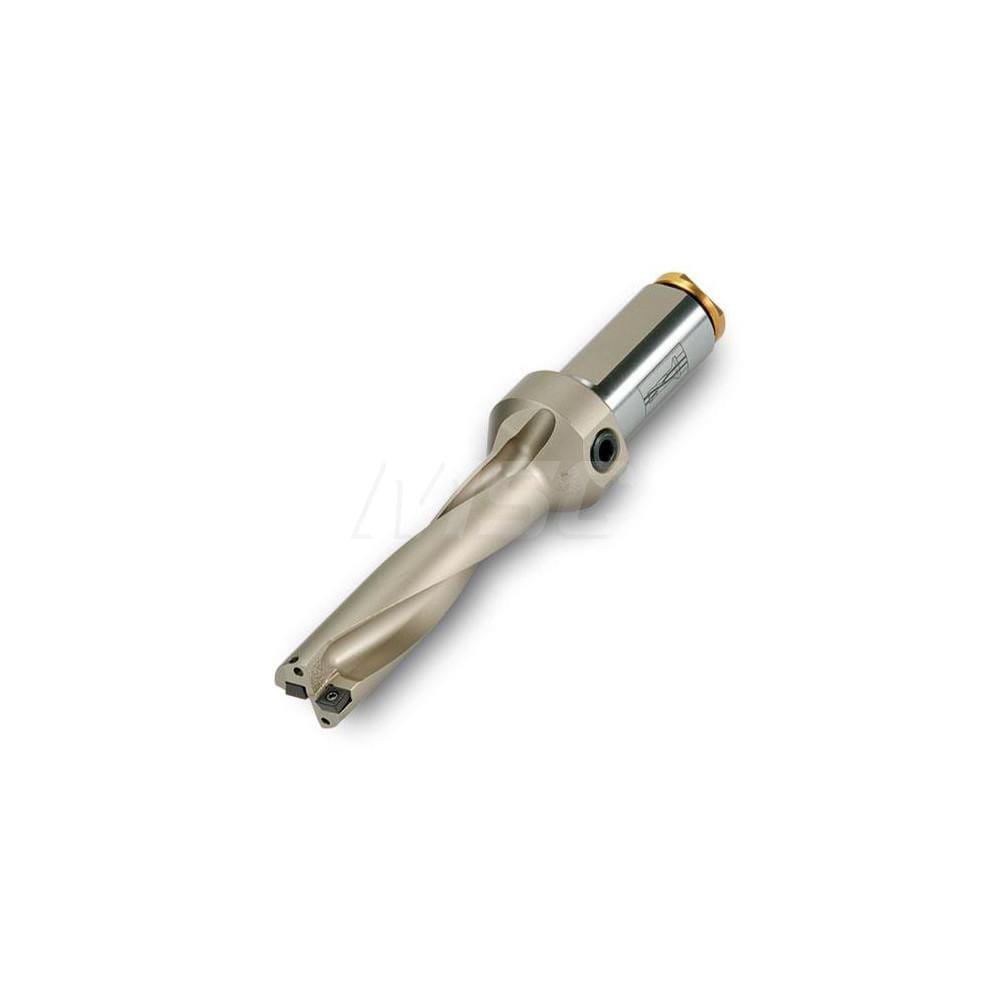

Indexable Insert Drill: Q0175070N5R01, 11/16" Max Dia, 2-3/4" Max Depth, 4xD, 1" Shank Dia
Item #: 09951054
Brand: Ingersoll Cutting Tools
Model #: 3240697
Product Specifications
| Compatible Drill Style | Q |
| Maximum Drill Diameter (Inch) | 11/16 |
| Maximum Drill Diameter (Decimal Inch) | 0.6875 |
| Maximum Drill Depth (Inch) | 2-3/4 |
| Maximum Drill Depth (Decimal Inch) | 2.7500 |
| Shank Type | Flatted |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 2.0000 to 3.0000 |
| Tool Material | Steel |
| Compatible Insert Style | SHLT |
| Compatible Insert Size Code | 050204 |
| Drill Depth by Diameter Ratio | 4xD |
| Coolant Entry Style Code | 3- Axial Concentric & Radial |
| Overall Length (Decimal Inch) | 6.1800 |
| Series | Quad Drill |
| Flute Length (Decimal Inch) | 2.7500 |
| Body Length (Decimal Inch) | 3.9800 |
| Shank Length (Decimal Inch) | 2.2100 |
| Neck Diameter (Inch) | 1.2600 |
| Modular Connection Size | 1 in |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.2360x0.0980 |
| Insert Size (mm) | 6.00 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | SHLT 050204N-PH |
| Collar Diameter (Decimal Inch) | 1.2600 |
| Insert Lock Screw | SE01-16 |
| Coolant Through | Yes |
