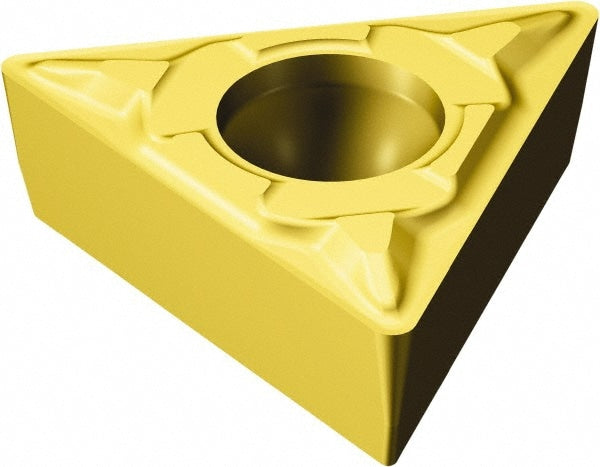

Turning Insert: TPMT1.81.51-MF 2015, Carbide
Item #: 54912282
Brand: Sandvik Coromant
Model #: 5755293
Product Specifications
| ANSI Insert Code | TPMT1.81.51 |
| ISO Insert Code | TPMT090204 |
| Relief Angle | 11 |
| Insert Style | TPMT |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 60 |
| Manufacturer Grade | 2015 |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness | 2.38 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Series | CoroTurn 111 |
| Inscribed Circle (Decimal Inch) | 0.2188 |
| Inscribed Circle (Inch) | 7/32 |
| Insert Material | Carbide |
| Insert Shape | T - Triangle |
| Chip Breaker Operation | Finishing |
| Grade Characteristics | Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 3 |
| Insert Shape Code | T |
| Hole Diameter (Decimal Inch) | 0.0984 |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.50 |
| Maximum Depth of Cut (mm) | 9.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.3740 |
| Insert Holding Method | Screw |
| Clearance Code | P |
| Tolerance Code | M |
| Length Range (Decimal Inch) | 0.3000 - 0.4000 |
| Insert Length (Decimal Inch) | 0.3898 |
| Insert Length (mm) | 9.90 |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| Iso Code | TPMT 09 02 04-MF 2015 |
| Manufacturers Catalog Number | 5755293 |
| Chip Breaker | MF |
| ANSI Size Code | 1.81.51 |
| ISO Size Code | 090204 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 1.81.51 |
