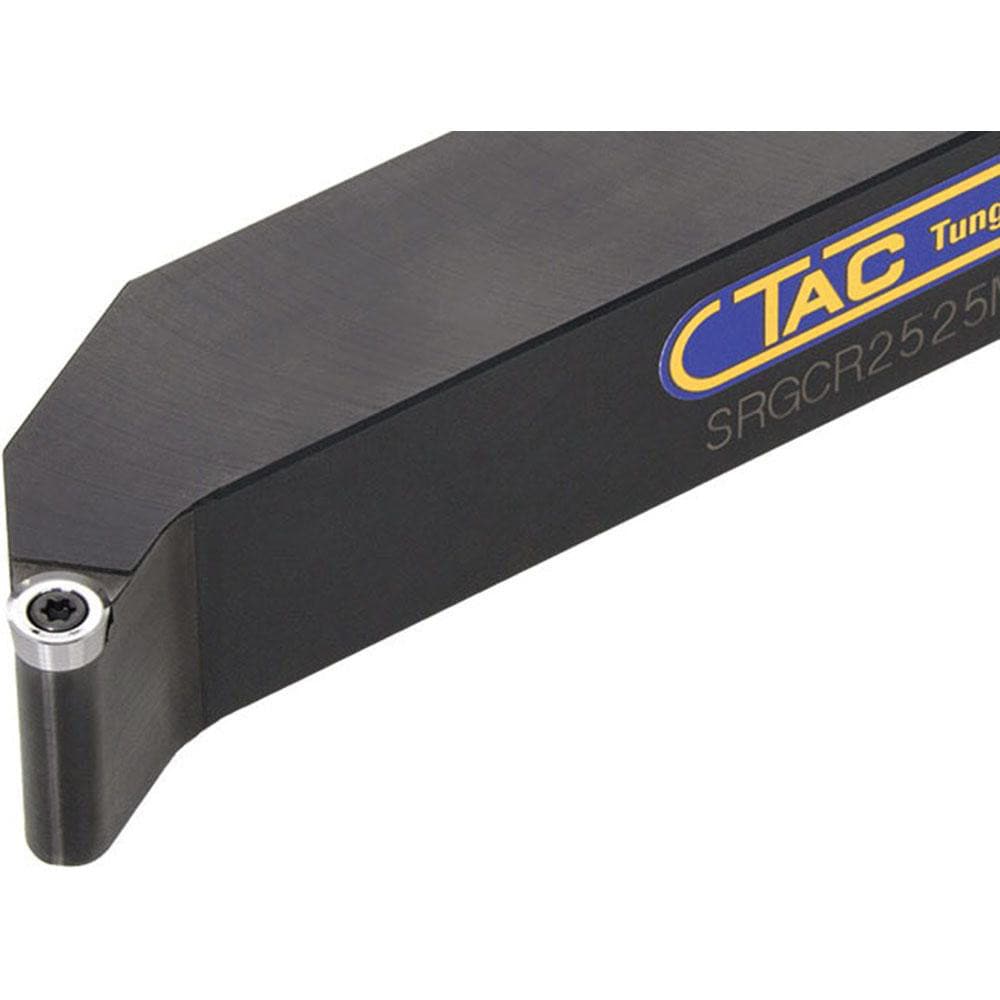

Indexable Turning Toolholder: SRGCR1212H06, 91.000 deg Lead Angle, Screw
Item #: 64001456
Brand: Tungaloy
Model #: 6807301
Product Specifications
| Toolholder Style | SRGC |
| Hand of Holder | Right Hand |
| Lead Angle | 91.000 |
| Insert Compatibility | RC..0602 |
| Insert Holding Method | Screw |
| Shank Width (mm) | 12.00 |
| Shank Height (mm) | 12.00 |
| Rake | Positive |
| Cutting Direction | Right Hand |
| Compatible Insert Size Code | RC..0602 |
| Multi-use Tool | Yes |
| Series | SRGC |
| Cutting Tool Application | Facing; Turning |
| Head Length (mm) | 10.00 |
| Back of Bar to Cutting Edge (mm) | 16.00 |
| Primary Workpiece Material | Universal |
| Insert Inscribed Circle (Decimal Inch) | 0.2360 |
| Toolholder Material | Steel |
| UNSPSC Code | 23153308 |
| Insert Thickness (Decimal Inch) | 0.0940 |
| Toolholder Style | SRGC |
| Hand of Holder | Right Hand |
| Lead Angle | 91.000 |
| Insert Compatibility | RC..0602 |
| Insert Holding Method | Screw |
| Shank Width (mm) | 12.00 |
| Shank Height (mm) | 12.00 |
| Rake | Positive |
| Cutting Direction | Right Hand |
| Compatible Insert Size Code | RC..0602 |
| Multi-use Tool | Yes |
| Series | SRGC |
| Cutting Tool Application | Facing; Turning |
| Head Length (mm) | 10.00 |
| Back of Bar to Cutting Edge (mm) | 16.00 |
| Primary Workpiece Material | Universal |
| Insert Inscribed Circle (Decimal Inch) | 0.2360 |
| Toolholder Material | Steel |
| UNSPSC Code | 23153308 |
| Insert Thickness (Decimal Inch) | 0.0940 |
| MSC Part # | 64001456 |
| Mfr Part # | 6807301 |
| Country of Origin Country of Origin is subject to change | Japan |
