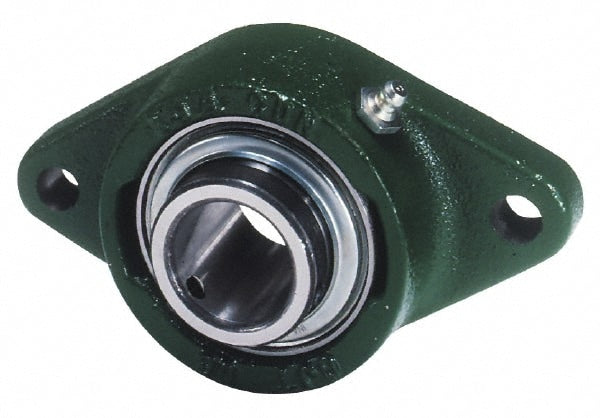

45mm ID, 7.106" OAL x 2.146" OAH 2-Bolt Set Screw Econseal In
Item #: 57132375
Brand: INA Bearing
Model #: PCJTY45
Product Specifications
| Type | 2Bolt Setscrew Econseal In |
| Inside Diameter (mm) | 45.0000 |
| Inside Diameter (Decimal Inch) | 1.7720 |
| Overall Length (Decimal Inch) | 7.1060 |
| Overall Height (Decimal Inch) | 2.1460 |
| Static Load Capacity | 4600.0 |
| Dynamic Load Capacity (Lb.) | 7400 |
| Distance Between Base And Center (mm) | 112.0000 |
| Distance Between Base And Center (Decimal Inch) | 4.4090 |
| UNSPSC Code | 31171500 |
| Shipping Weight (kg) | 2.100 |
| Flange Thickness (Decimal Inch) | 0.5910 |
| Type | 2Bolt Setscrew Econseal In |
| Inside Diameter (mm) | 45.0000 |
| Inside Diameter (Decimal Inch) | 1.7720 |
| Overall Length (Decimal Inch) | 7.1060 |
| Overall Height (Decimal Inch) | 2.1460 |
| Static Load Capacity | 4600.0 |
| Dynamic Load Capacity (Lb.) | 7400 |
| Distance Between Base And Center (mm) | 112.0000 |
| Distance Between Base And Center (Decimal Inch) | 4.4090 |
| UNSPSC Code | 31171500 |
| Shipping Weight (kg) | 2.100 |
| Flange Thickness (Decimal Inch) | 0.5910 |
| MSC Part # | 57132375 |
| Mfr Part # | PCJTY45 |
| Country of Origin Country of Origin is subject to change | Vietnam |
