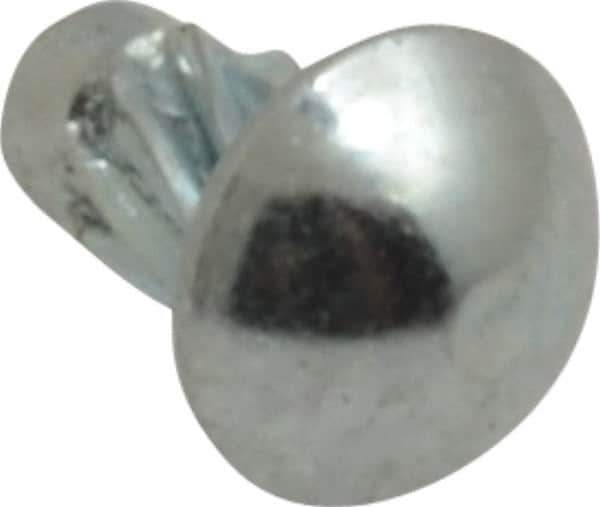

Value Collection - #4 Round Head Sheet Metal Screw - Steel, 3/16" Length Under Head, AISI 1016, ASME B18.6.3 & ASME B18.6.4, Grade 1016-1024
Item #: 67383844
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Round head types are dome shaped with flat bearing surfaces. They have a higher head height than pan head fasteners.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
Type U screws have large, flat points, multiple start threads and high helix body threads that quickly drive screws into sheet metal. They give a positive location in prepared holes.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Head Type | Round |
| Screw Size | #4 |
| Length (Inch) | 3/16 |
| Drive Type | N/A |
| Material | Steel |
| Material Grade | 1016-1024 |
| Point Type | Type U |
| Length Measurement Type | Length Under Head |
| Finish/Coating | Zinc-Plated |
| Fastener Standard | AISI 1016; ASME B18.6.3; ASME B18.6.4 |
