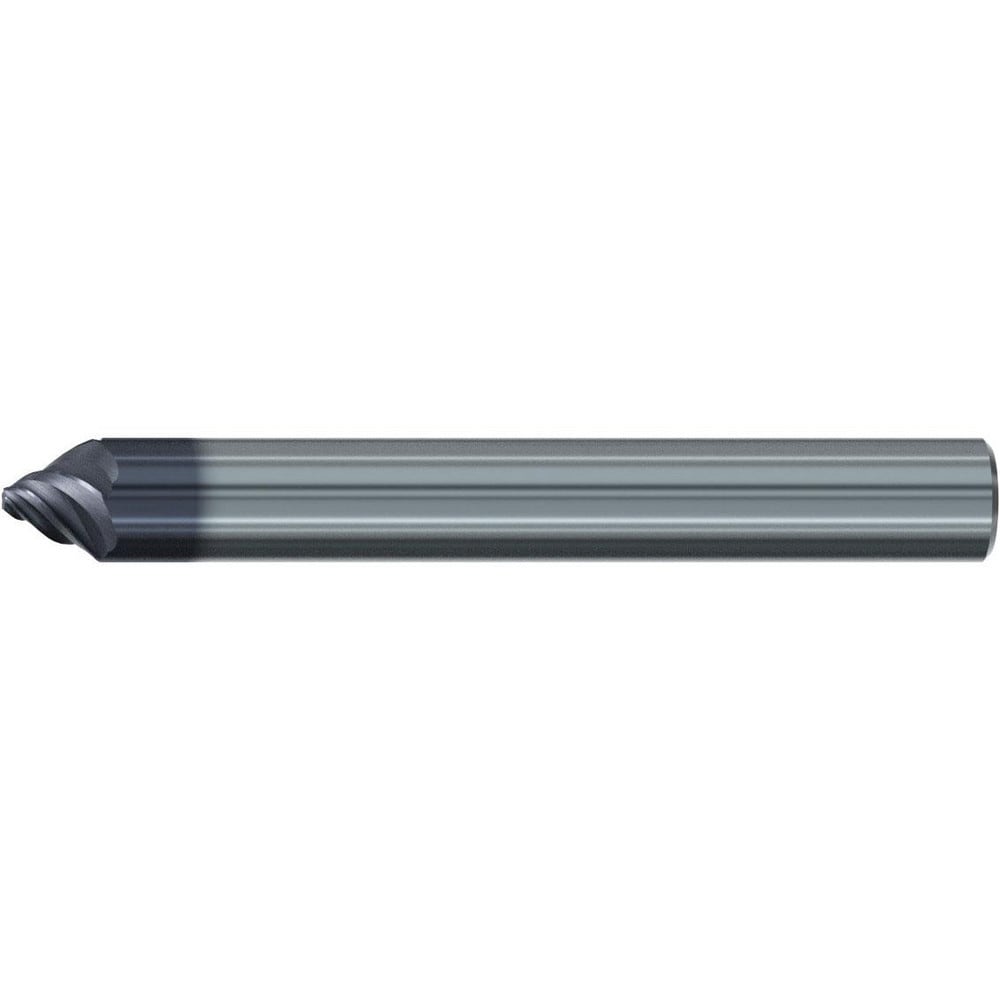

Chamfer Mill: 1/4" Shank Dia, 82.00 deg, 5 Flute, Carbide, Corner Chamfer End
Item #: 65001042
Brand: Emuge
Model #: 1709A.082250
Product Specifications
| Cutter Head Diameter (Decimal Inch) | 0.0600 |
| End Type | Corner Chamfer |
| Shank Diameter (Inch) | 1/4 |
| Overall Length (Inch) | 2-1/2 |
| Tool Application | Chamfering |
| Number Of Flutes | 5 |
| Cutting Direction | Right Hand |
| Series | 1709A |
| Tapered | Yes |
| Coolant Through | No |
| Chamfer Mill Material | Carbide |
| Material Application | Universal |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.1090 |
| Coating/Finish | TiAlN |
| Included Angle | 82.00 |
| UNSPSC Code | 23241600 |
| Cutter Head Diameter (Decimal Inch) | 0.0600 |
| End Type | Corner Chamfer |
| Shank Diameter (Inch) | 1/4 |
| Overall Length (Inch) | 2-1/2 |
| Tool Application | Chamfering |
| Number Of Flutes | 5 |
| Cutting Direction | Right Hand |
| Series | 1709A |
| Tapered | Yes |
| Coolant Through | No |
| Chamfer Mill Material | Carbide |
| Material Application | Universal |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.1090 |
| Coating/Finish | TiAlN |
| Included Angle | 82.00 |
| UNSPSC Code | 23241600 |
| MSC Part # | 65001042 |
| Mfr Part # | 1709A.082250 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
