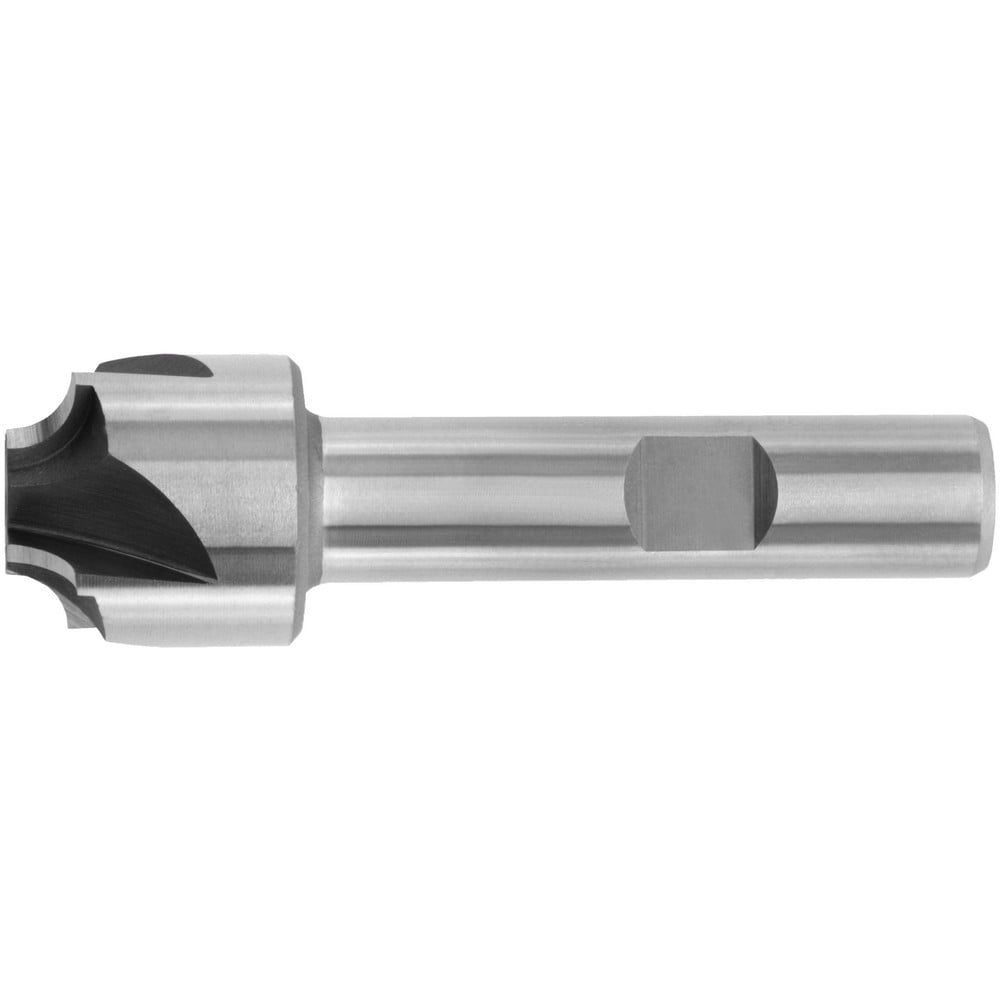

Corner Rounding End Mill: 1/2" Radius, 1-1/2" Dia, 4 Flutes, 25.40 mm LOC, High Speed Steel
Item #: 65107278
Brand: Cleveland
Model #: C75386
Product Specifications
| Mill Diameter (mm) | 38.10 |
| Mill Diameter (Inch) | 1-1/2 |
| Mill Diameter (Decimal Inch) | 1.5000 |
| Length of Cut (mm) | 25.4000 |
| End Mill Material | High Speed Steel |
| Number Of Flutes | 4 |
| Radius (Decimal Inch) | 0.5000 |
| Radius (Inch) | 1/2 |
| Radius (mm) | 12.70 |
| Shank Type | Weldon Flat; Straight |
| Flute Type | Spiral |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1 |
| Shank Diameter (mm) | 25.4000 |
| Overall Length (Inch) | 4-1/8 |
| Overall Length (mm) | 104.7700 |
| Overall Length (Decimal Inch) | 4.1250 |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Material Grade | M2 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Series | CRE |
| Coolant Through | No |
| Single Or Double End | Single End |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.0000 |
| Coating/Finish | Bright/Uncoated |
| UNSPSC Code | 27112803 |
| Mill Diameter (mm) | 38.10 |
| Mill Diameter (Inch) | 1-1/2 |
| Mill Diameter (Decimal Inch) | 1.5000 |
| Length of Cut (mm) | 25.4000 |
| End Mill Material | High Speed Steel |
| Number Of Flutes | 4 |
| Radius (Decimal Inch) | 0.5000 |
| Radius (Inch) | 1/2 |
| Radius (mm) | 12.70 |
| Shank Type | Weldon Flat; Straight |
| Flute Type | Spiral |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1 |
| Shank Diameter (mm) | 25.4000 |
| Overall Length (Inch) | 4-1/8 |
| Overall Length (mm) | 104.7700 |
| Overall Length (Decimal Inch) | 4.1250 |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Material Grade | M2 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Series | CRE |
| Coolant Through | No |
| Single Or Double End | Single End |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.0000 |
| Coating/Finish | Bright/Uncoated |
| UNSPSC Code | 27112803 |
| MSC Part # | 65107278 |
| Mfr Part # | C75386 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
