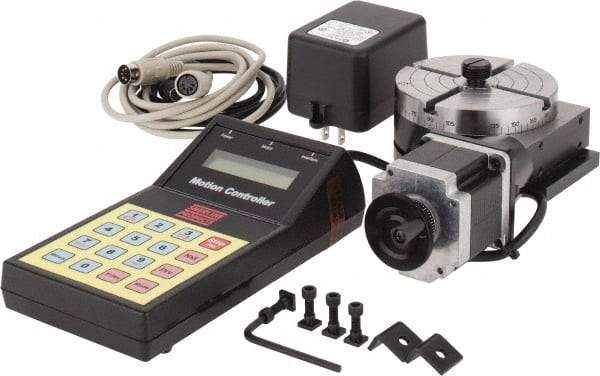

Sherline - 28,800 Max RPM Table/400 Max RPM Motor, 4" Table Diam, Horiz, CNC Rotary Indexing Table - 1.963" Centerline Height, 4" Subtable OD, 0.316" Through Hole, 120.00 Voltage, 0.006" Positioning Accuracy, AC Stepper Motor
Item #: 67274613
Brand: Sherline
Model #: 8700
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Indexer Type | Rotary Table |
| Maximum RPM | 28800 (Table); 400 (Motor) |
| Table Diameter (Inch) | 4 |
| Setting Position | Horizontal |
| Sub Table Outside Diameter (Inch) | 4 |
| Centerline Height (Decimal Inch) | 1.9630 |
| Through Hole Size (Decimal Inch) | 0.3160 |
| Resolution (Degrees) | 0.0125 |
| Positioning Accuracy (Decimal Inch) | 0.0060 |
| Gear Ratio | 72:1 |
| Motor Type | AC Stepper |
| Voltage | 120.00 |
| Includes | Chuck Adapter; Computer/Keypad Unit; Connecting Cables; Instructions; Mounted Stepper Motor; Mounting Hardware; Power Supply |
