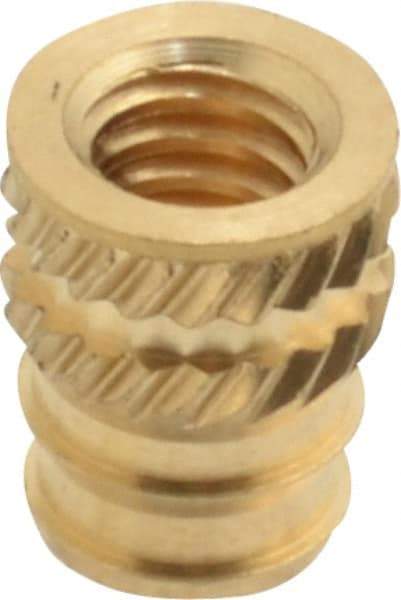

E-Z LOK - #8-32, 0.208" Small to 0.234" Large End Hole Diam, Brass Double Vane Tapered Hole Threaded Insert - 1/4" Insert, 0.212" Pilot Diam, 5/16" OAL, 0.133" Min Wall Thickness
Item #: 67214569
Brand: E-Z LOK
Model #: DV-008-TH
Exact Tooling IR#: 04
Features and Benefits
Double vane inserts have two extruding lips, called vanes, along the lower outer shaft of the insert. They provide extra holding power and resistance against pullout.
| Product Specifications | |
|---|---|
| Type | Double Vane |
| System of Measurement | Inch |
| Thread Size (Inch) | #8-32 |
| Overall Length (Decimal Inch) | 0.3120 |
| Insert Diameter (Decimal Inch) | 0.2500 |
| Pilot Diameter (Decimal Inch) | 0.2120 |
| Small End Hole Diameter (Decimal Inch) | 0.2080 |
| Large End Hole Diameter (Decimal Inch) | 0.2340 |
| Minimum Wall Thickness (Decimal Inch) | 0.1330 |
| For Material Type | Plastic |
| Material | Brass |
| Thread Standard | UNC |
