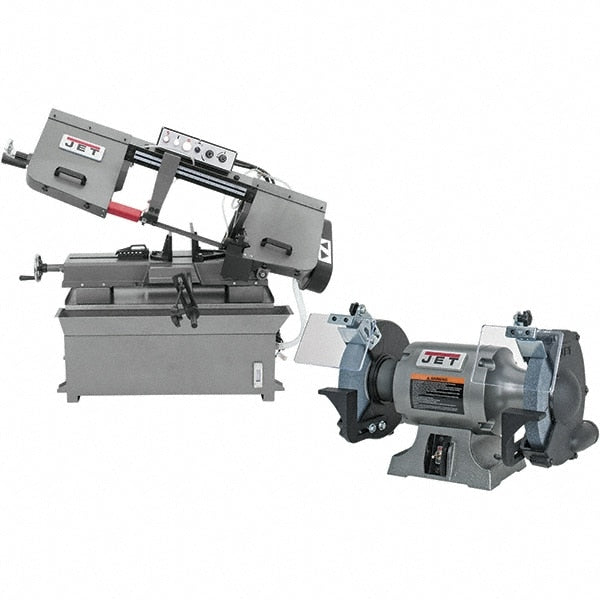

9 x 16" Manual Horizontal Bandsaw: Step Pulley Drive
Item #: 35113240
Brand: Jet
Model #: 5695209/9712424
Product Specifications
| Machine Style | Manual |
| Drive Type | Step Pulley |
| Angle of Rotation | 45 |
| Rectangular Cutting Capacity - Horizontal At 90 Degrees | 9 x 16 in |
| Maximum Capacity (Rectangular) (Inch) | 9 x 16 |
| Maximum Capacity (Rounds) (Inch) | 9.0000 |
| Round Cutting Capacity - Horizontal at 90 Degrees | 9 in |
| Phase | Single |
| Voltage | 230V; 115V |
| Blade Length (Inch) | 119-1/2 |
| Blade Width | 1.0 in |
| Blade Width (Decimal Inch) | 1.0000 |
| Blade Thickness (Decimal Inch) | 0.0350 |
| Base Depth (Inch) | 28 |
| Base Depth (Decimal Inch) | 28.0000 |
| Blade Guide Type | Carbide |
| Blade Brush Included | Yes |
| Base Width (Inch) | 65.0000 |
| Coolant System | Yes |
| Angular Cuts at 45 Degrees (Decimal Inch) | 6-1/8 (Round); 9 x 6-1/8 (Rectangular) |
| UNSPSC Code | 23231100 |
