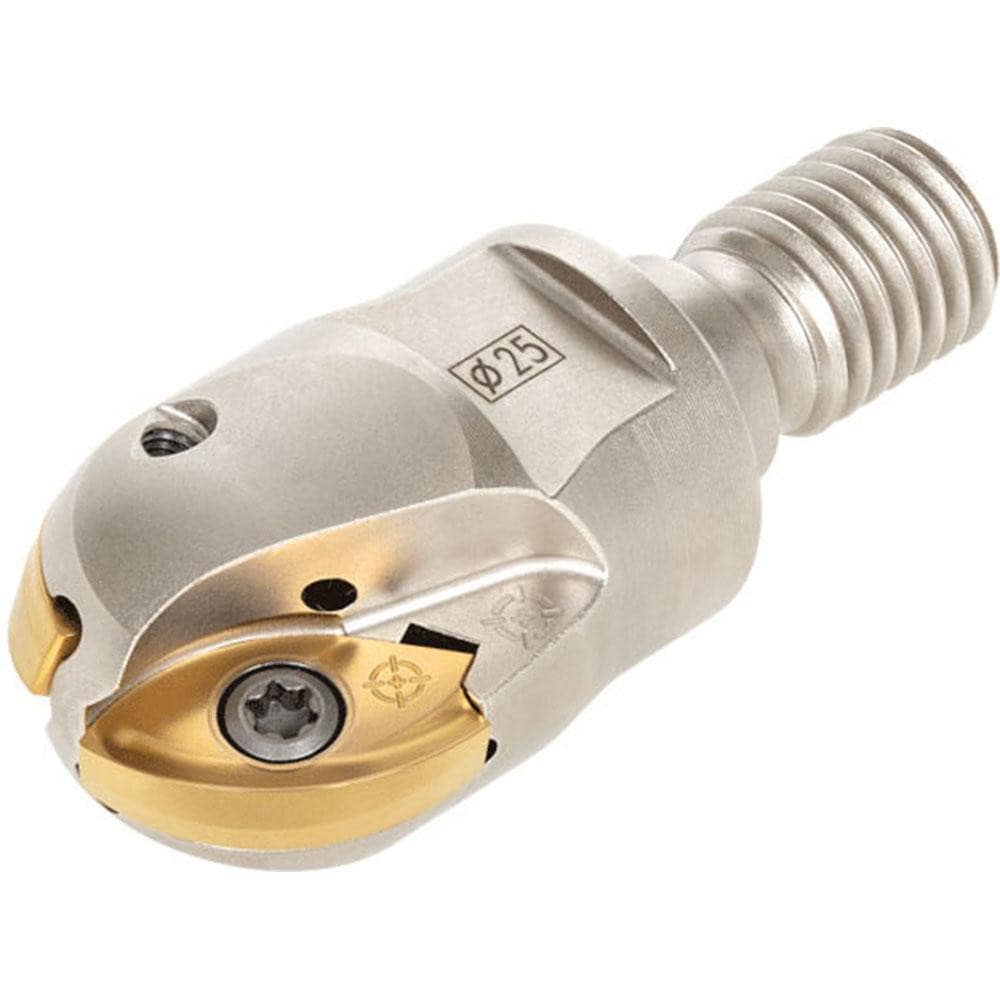

Indexable Ball Nose End Mills; Cutting Diameter (Decimal Inch): 0.9843; Cutting Diameter (mm): 25.00; Tool Material: Steel; Maximum Depth of Cut (mm): 17.70; Shank Type: Modular Connection
Item #: 63762702
Brand: Tungaloy
Model #: 3113364
Product Specifications
| Cutting Diameter (Decimal Inch) | 0.9843 |
| Cutting Diameter (mm) | 25.00 |
| Tool Material | Steel |
| Maximum Depth of Cut (mm) | 17.70 |
| Shank Type | Modular Connection |
| Shank Diameter (mm) | 17.0000 |
| Insert Holding Method | Screw |
| Modular Connection Thread Size | M12 |
| Compatible Insert Style | ZRBM |
| Compatible Insert Size Code | 250 |
| Toolholder Style | HBRM-M |
| Tapered Neck | No |
| Overall Length (mm) | 57.0000 |
| Series | HBRM-M |
| Head Length (mm) | 35.00 |
| Modular Shank Size | M12 |
| Tool Application | Profile Milling |
| Manufacturers Catalog Number | HBRM25M12 |
| Number Of Flutes | 2 |
| Coolant Through | Yes |
| Number of Ball Nose Inserts | 2 |
| Number Of Inserts | 2 |
| Complete Insert Compatibility | ZRBM |
| UNSPSC Code | 27112803 |
| Cutting Diameter (Decimal Inch) | 0.9843 |
| Cutting Diameter (mm) | 25.00 |
| Tool Material | Steel |
| Maximum Depth of Cut (mm) | 17.70 |
| Shank Type | Modular Connection |
| Shank Diameter (mm) | 17.0000 |
| Insert Holding Method | Screw |
| Modular Connection Thread Size | M12 |
| Compatible Insert Style | ZRBM |
| Compatible Insert Size Code | 250 |
| Toolholder Style | HBRM-M |
| Tapered Neck | No |
| Overall Length (mm) | 57.0000 |
| Series | HBRM-M |
| Head Length (mm) | 35.00 |
| Modular Shank Size | M12 |
| Tool Application | Profile Milling |
| Manufacturers Catalog Number | HBRM25M12 |
| Number Of Flutes | 2 |
| Coolant Through | Yes |
| Number of Ball Nose Inserts | 2 |
| Number Of Inserts | 2 |
| Complete Insert Compatibility | ZRBM |
| UNSPSC Code | 27112803 |
| MSC Part # | 63762702 |
| Mfr Part # | 3113364 |
| Country of Origin Country of Origin is subject to change | South Korea |
