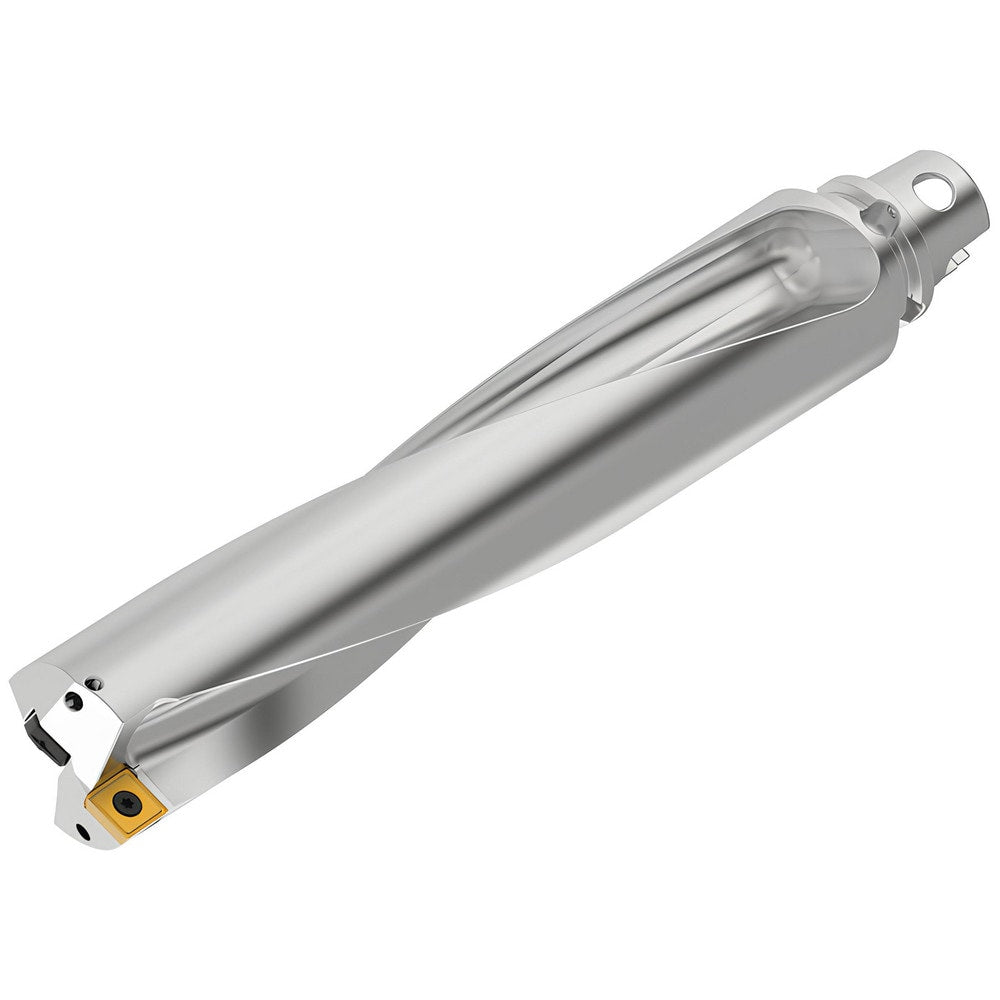

Indexable Insert Drill: DFPR2500R5KM50, 64.50 mm Max Dia, 317.50 mm Max Depth, 5xD, 50.00 mm Shank Dia
Item #: 04972709
Brand: Kennametal
Model #: 7034584
Product Specifications
| Compatible Drill Style | DFPR |
| Maximum Drill Diameter (mm) | 64.50 |
| Maximum Drill Diameter (Decimal Inch) | 2.5390 |
| Maximum Drill Depth (Inch) | 12-1/2 |
| Maximum Drill Depth (Decimal Inch) | 12.5000 |
| Maximum Drill Depth (mm) | 317.50 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1-31/32 |
| Shank Diameter (Decimal Inch) | 1.9685 |
| Shank Diameter (mm) | 50.00 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 10.0000+ |
| Maximum Drill Depth Range (mm) | 200.00+ |
| Tool Material | Steel |
| Compatible Insert Style | DFPR |
| Compatible Insert Size Code | 200608; 180610 |
| Drill Depth by Diameter Ratio | 5xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 15.6488 |
| Series | DFPR |
| Flute Length (Decimal Inch) | 12.5000 |
| Flute Length (mm) | 347.50 |
| Body Length | 397.45 |
| Body Length (Decimal Inch) | 14.3890 |
| Shank Length (Decimal Inch) | 1.2598 |
| Shank Length (mm) | 31.95 |
| Modular Connection Size | KM50 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.7360x0.2440; 0.8070x0.2440 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | DFPR180610__O; DFPR200608__I |
| Collar Diameter (Decimal Inch) | 2.4354 |
| Collar Diameter (mm) | 61.86 |
| Insert Lock Screw | M6-1.0x14T25 |
| Coolant Through | Yes |
