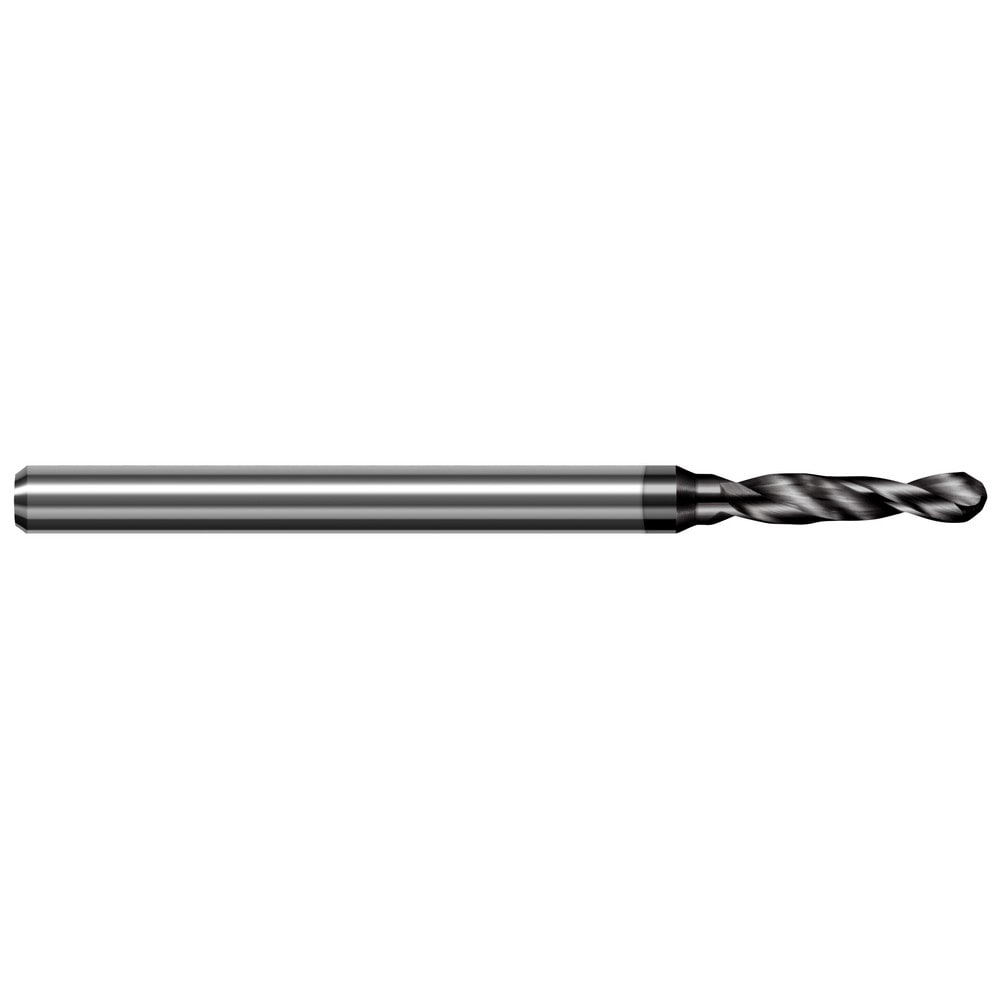

Micro Drill Bit: 0.1160" Dia, 130 deg, Solid Carbide
Item #: 93491843
Brand: Harvey Tool
Model #: DDB1160-C4
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.1160 |
| Tool Material | Solid Carbide |
| Flute Length (Decimal Inch) | 0.8000 |
| Coating/Finish | Amorphous Diamond |
| Coolant Through | No |
| Drill Point Angle | 130 |
| Cutting Direction | Right Hand |
| Maximum Drilling Depth (Decimal Inch) | 0.8000 |
| Number Of Flutes | 2 |
| Series | Miniature High Performance Drills - Composites - Double Angle |
| Overall Length (Decimal Inch) | 2.5000 |
| Flute Type | Spiral |
| Shank Type | Straight-Cylindrical |
| Point Type | Double Angle |
| Tool Application | Through Hole Drilling |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Shank Diameter (Inch) | 3/16 |
| UNSPSC Code | 23241600 |
| Country of Origin | UNITED STATES |
