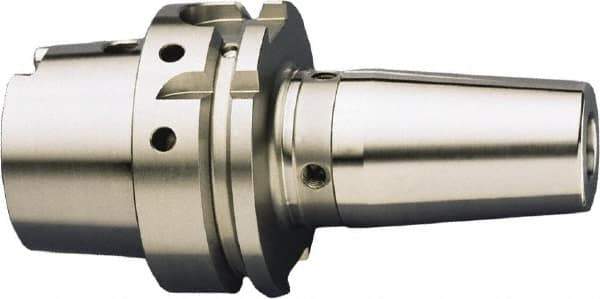

HAIMER - 1/4" Hole Diam, HSK40A Taper Shank Shrink Fit Tool Holder & Adapter - 3.15" Projection, 0.83" Nose Diam, 1.42" Clamping Depth, 25,000 RPM
Item #: 66813999
Brand: HAIMER
Model #: A40.140.1/4Z
Exact Tooling IR#: 04
Features and Benefits
Taper shanks are held in the machine spindle or in a toolholder clamping system.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | HSK40A |
| Hole Diameter (Decimal Inch) | 0.2500 |
| Hole Diameter (Inch) | 1/4 |
| Projection (Decimal Inch) | 3.1500 |
| Nose Diameter (Decimal Inch) | 0.8300 |
| Through Coolant | No |
| Clamping Depth (Decimal Inch) | 1.4200 |
| Balanced to (RPM) | 25000 |
| Series | Standard |
