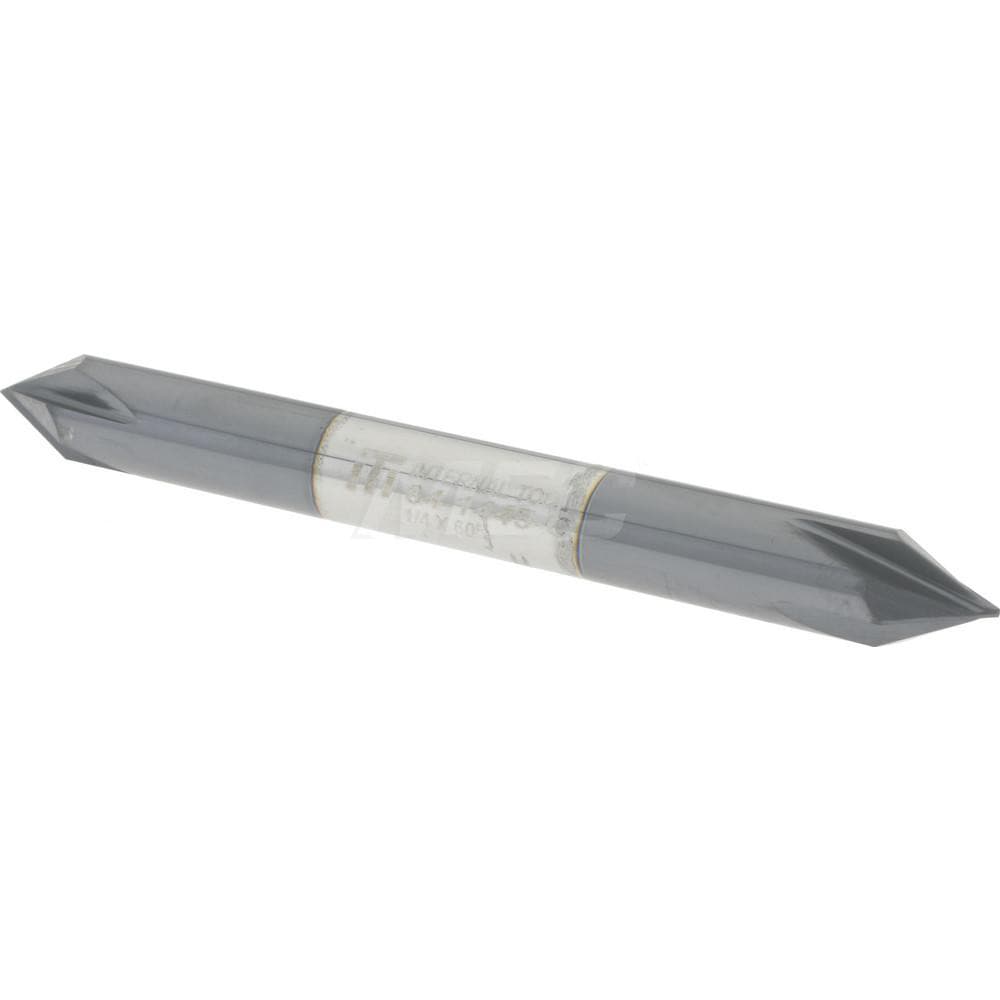

Chamfer Mill: 1/4" Dia, 1/4" Shank Dia, 60 deg, 4 Flute, Solid Carbide, Double End
Item #: 34948612
Brand: Made in USA
Model #: 64-1445-C
Product Specifications
| Cutter Head Diameter (Fractional Inch) | 1/4 |
| Cutter Head Diameter (Decimal Inch) | 0.2500 |
| End Type | Double |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Shank Diameter (Inch) | 1/4 |
| Shank Length (Decimal Inch) | 2.1000 |
| Overall Length (Inch) | 2-1/2 |
| Tool Application | Chamfering; Countersinking |
| Number Of Flutes | 4 |
| Cutting Direction | Right Hand |
| Series | 64 |
| Tapered | No |
| Coolant Through | No |
| Chamfer Mill Material | Solid Carbide |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.2000 |
| Coating/Finish | AlTiN |
| Included Angle | 60 |
| UNSPSC Code | 23241600 |
