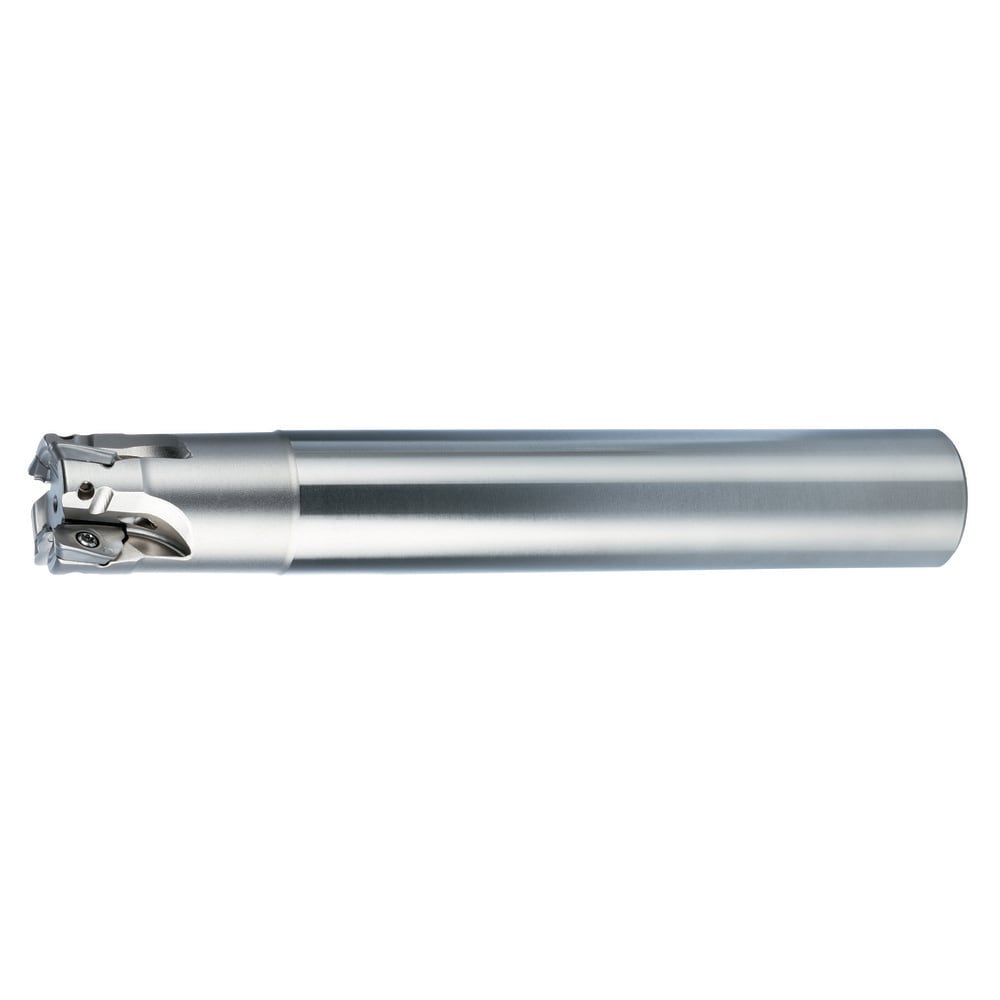

Indexable Square-Shoulder End Mill: PSE07R075FA075-4L, 0.7500'' Cut Dia, 0.2360'' Max Depth of Cut, Weldon Flat Shank
Item #: 01215276
Brand: OSG
Model #: 7801366
Product Specifications
| Overall Length (Decimal Inch) | 4.3940 |
| Maximum Depth of Cut (Decimal Inch) | 0.2360 |
| Cutter Style | PSE |
| Shank Type | Weldon Flat |
| Shank Diameter (Inch) | 3/4 |
| Maximum Ramping Angle | 0 |
| Series | 78013 |
| Flute Type | Straight |
| Head Length (Decimal Inch) | 2.362 |
| Tool Performance | High Performance |
| Rake | Neutral |
| Complete Insert Compatibility | ZDKT07 |
| Rake Angle | 0 |
| Multi-Use Tool | Yes |
| UNSPSC Code | 23242106 |
| Number of Inserts Included in Order | 0 |
| Number Of Flutes | 4 |
| Number Of Cutter Inserts | 4 |
| Coolant Through | Yes |
