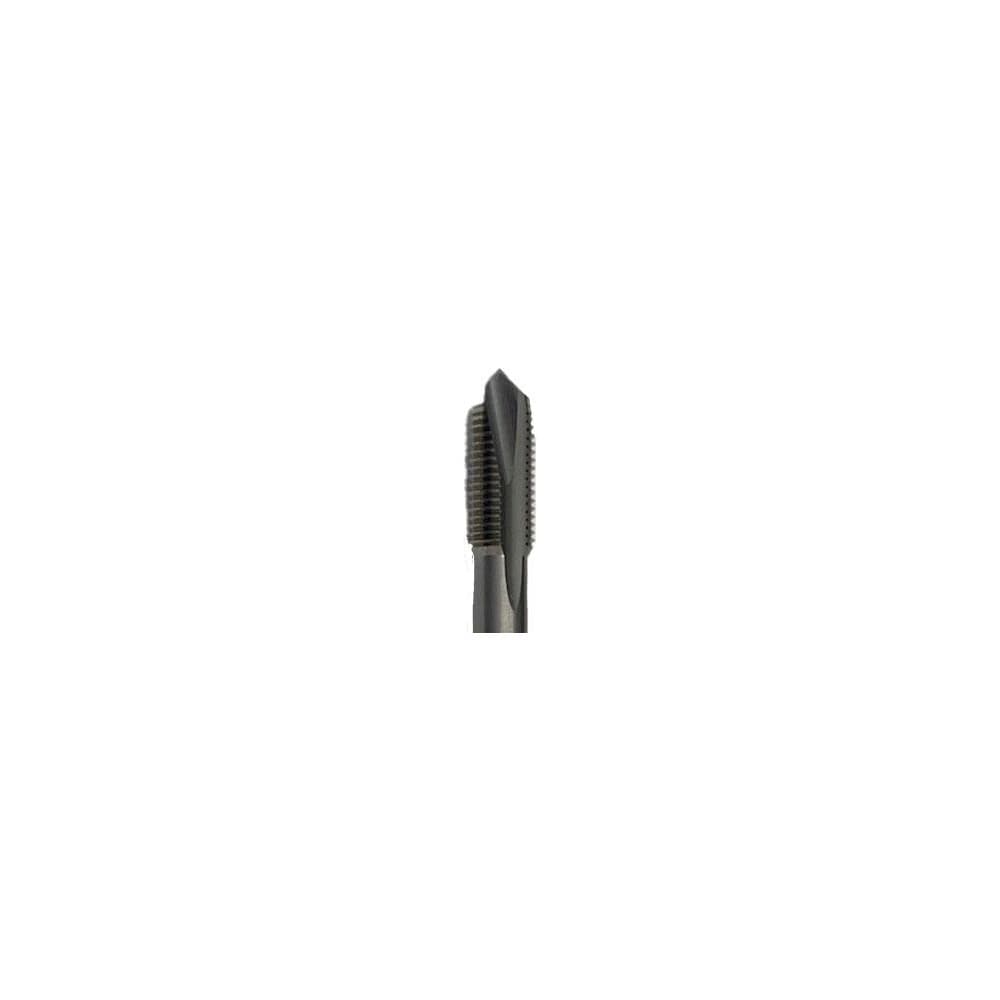

Spiral Point Tap: 1/4-20 UNC, 3 Flutes, Plug Chamfer, 2B Class of Fit, HSS, Bright/Uncoated Coated
Item #: 31257660
Brand: Yamawa
Model #: 382913B
Product Specifications
| Thread Size (Inch) | 1/4-20 |
| Thread Standard | UNC |
| Chamfer | Plug |
| Material | HSS |
| Thread Limit | H3 |
| Class Of Fit | 2B |
| Coating/Finish | Bright/Uncoated |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Number Of Flutes | 3 |
| Material Application | Stainless Steel |
| Oversize | No |
| Interrupted Thread | No |
| Threads per Inch | 20 |
| Overall Length (Inch) | 2-1/2 |
| Thread Pitch (Decimal Inch) | 0.05 |
| Overall Length (Decimal Inch) | 2.5 |
| Thread Length (Decimal Inch) | 0.5910 |
| Shank Diameter (Decimal Inch) | 0.2550 |
| Application | Through-Hole Threading |
| Neck Length (Decimal Inch) | 1.0000 |
| Neck Length (Inch) | 1 |
| Measurement Type | Fractional Inch |
| Series | ZELX SS |
| Style | Spiral Point |
| UNSPSC Code | 23241600 |
