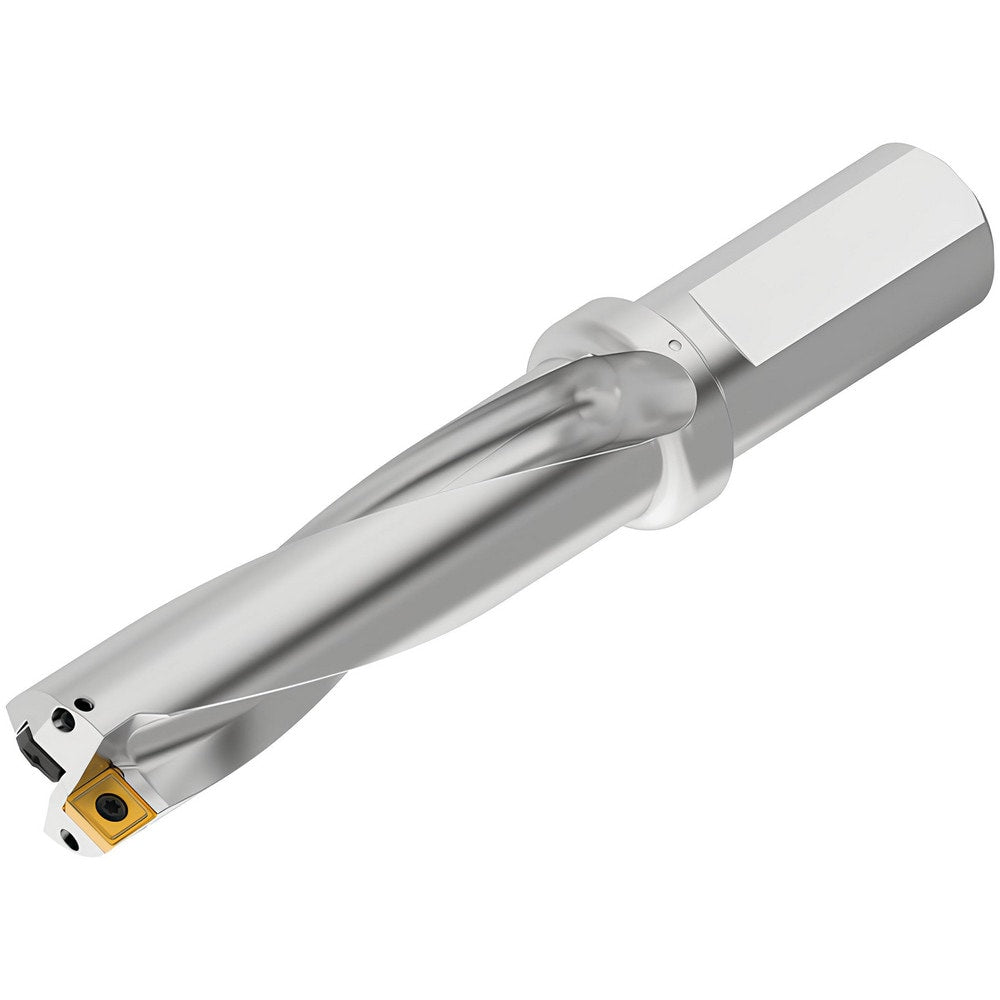

Indexable Insert Drill: DFPR0969R4WB100, 25.61 mm Max Dia, 98.45 mm Max Depth, 4xD, 25.40 mm Shank Dia
Item #: 04940920
Brand: Kennametal
Model #: 7031221
Product Specifications
| Compatible Drill Style | DFPR |
| Maximum Drill Diameter (mm) | 25.61 |
| Maximum Drill Diameter (Decimal Inch) | 1.0080 |
| Maximum Drill Depth (Decimal Inch) | 3.8760 |
| Maximum Drill Depth (mm) | 98.45 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (mm) | 25.40 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 3.0000 to 4.0000 |
| Maximum Drill Depth Range (mm) | 75.00 to 100.00 |
| Tool Material | Steel |
| Compatible Insert Style | DFPR |
| Compatible Insert Size Code | 090305; 100305 |
| Drill Depth by Diameter Ratio | 4xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 6.7490 |
| Series | DFPR |
| Flute Length (Decimal Inch) | 3.8760 |
| Flute Length (mm) | 103.45 |
| Body Length | 171.45 |
| Body Length (Decimal Inch) | 4.5450 |
| Shank Length (Decimal Inch) | 2.2040 |
| Shank Length (mm) | 56.00 |
| Coolant Hole Thread Size | "1/4-18 NPT" |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.3700x0.1180; 0.3900x0.1180 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | DFPR090305__O; DFPR100305__I |
| Collar Diameter (Decimal Inch) | 0.9374 |
| Collar Diameter (mm) | 23.81 |
| Body Side Coolant Hole Thread Size (Inch) | 1/4-18 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |
| Insert Lock Screw | M3-0.5x8T9 |
| Coolant Through | Yes |
