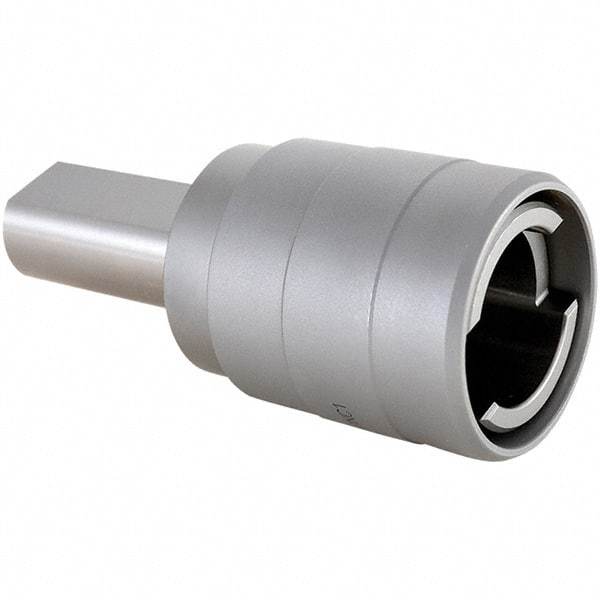

Techniks - 1" Straight Shank Diam Rigid Tapping Adapter - #0 to 9/16" Tap Capacity, 1.6" Projection
Item #: 66346487
Brand: Techniks
Model #: 21480/INC1
Exact Tooling IR#: 04
Features and Benefits
Rigid or solid tapping styles are used for general purpose CNC machining. The rigid tapping cycle synchronizes the machine and spindle rotation to match a specific thread pitch. It is used at higher speeds, but does not compensate for length during the taping cycle.
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Tapping Style | Rigid |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 1 |
| Minimum Tap Capacity (Inch) | #0 |
| Maximum Tap Capacity (Inch) | 9/16 |
| Projection (Decimal Inch) | 1.6000 |
| Quick Change | No |
| Minimum Collet Capacity (mm) | M1.6-M3.5 |
| Minimum Collet Capacity (Inch) | #0; #6 |
| Maximum Collet Capacity (Inch) | 9/16 |
| Maximum Collet Capacity (mm) | M14 |
| Overall Length (Decimal Inch) | 3.5500 |
