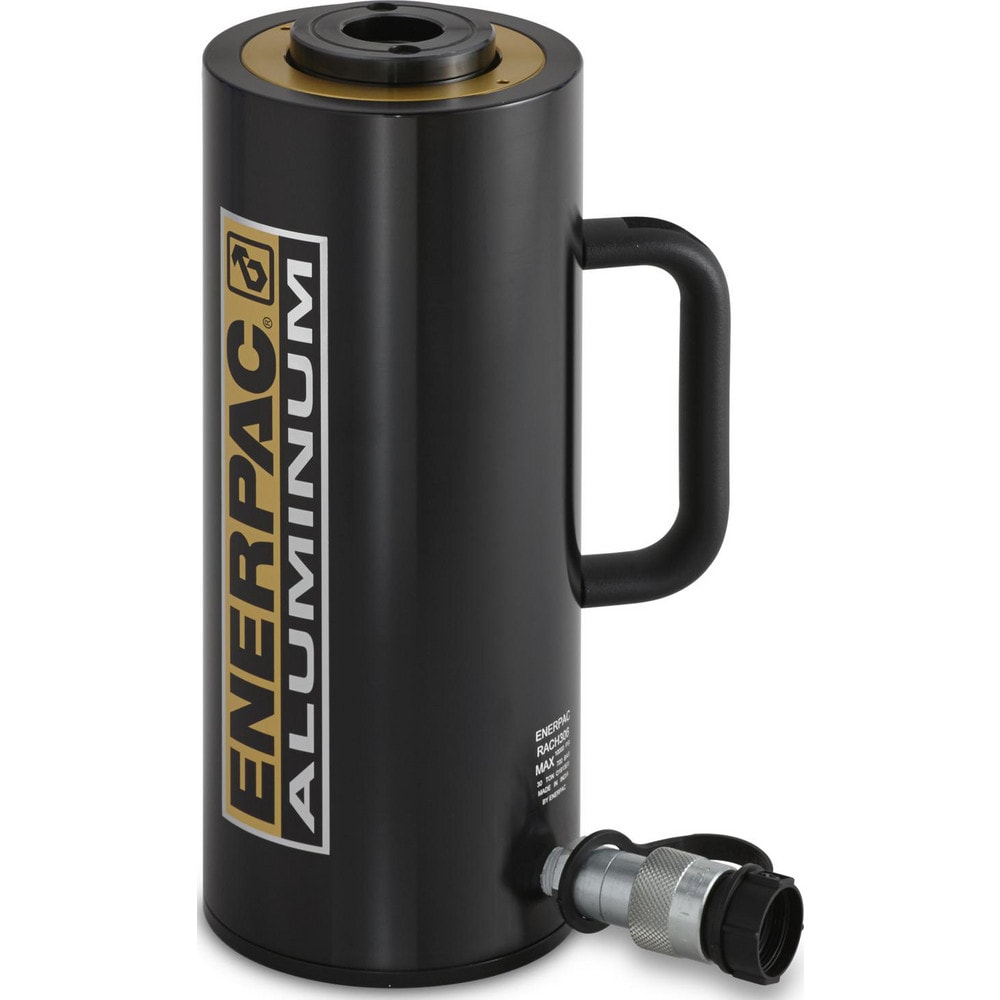

Portable Hydraulic Cylinders; Actuation: Single Acting; Load Capacity: 25; Stroke Length: 1.97; Oil Capacity: 9.98; Cylinder Bore Diameter (Decimal Inch): 2.95; Cylinder Effective Area: 1; Lowered Height: 7.41
Item #: 00338533
Brand: Enerpac
Model #: RACH202
Product Specifications
| Actuation | Single Acting |
| Load Capacity | 25 |
| Stroke Length | 1.97 |
| Oil Capacity | 9.98 |
| Cylinder Bore Diameter (Decimal Inch) | 2.95 |
| Cylinder Effective Area | 1 |
| Lowered Height | 7.41 |
| Retracted Length | 7 |
| Extended Length | 9.38 |
| Cushion Type | No Cushion |
| Bore Diameter | 2.9500 |
| Outside Diameter | 3.93 in |
| Plunger Type | Hollow |
| Maximum Working Pressure | 10000.000 |
| Body Material | Aluminum |
| Saddle Diameter | 2.17 |
| Series | RACH |
| Y Center Hole Diameter | 1.06 |
| Maximum Height (Inch) | 9.3800 |
| Includes | CR400 Coupler; Dust Cap |
| UNSPSC Code | 27121602 |
