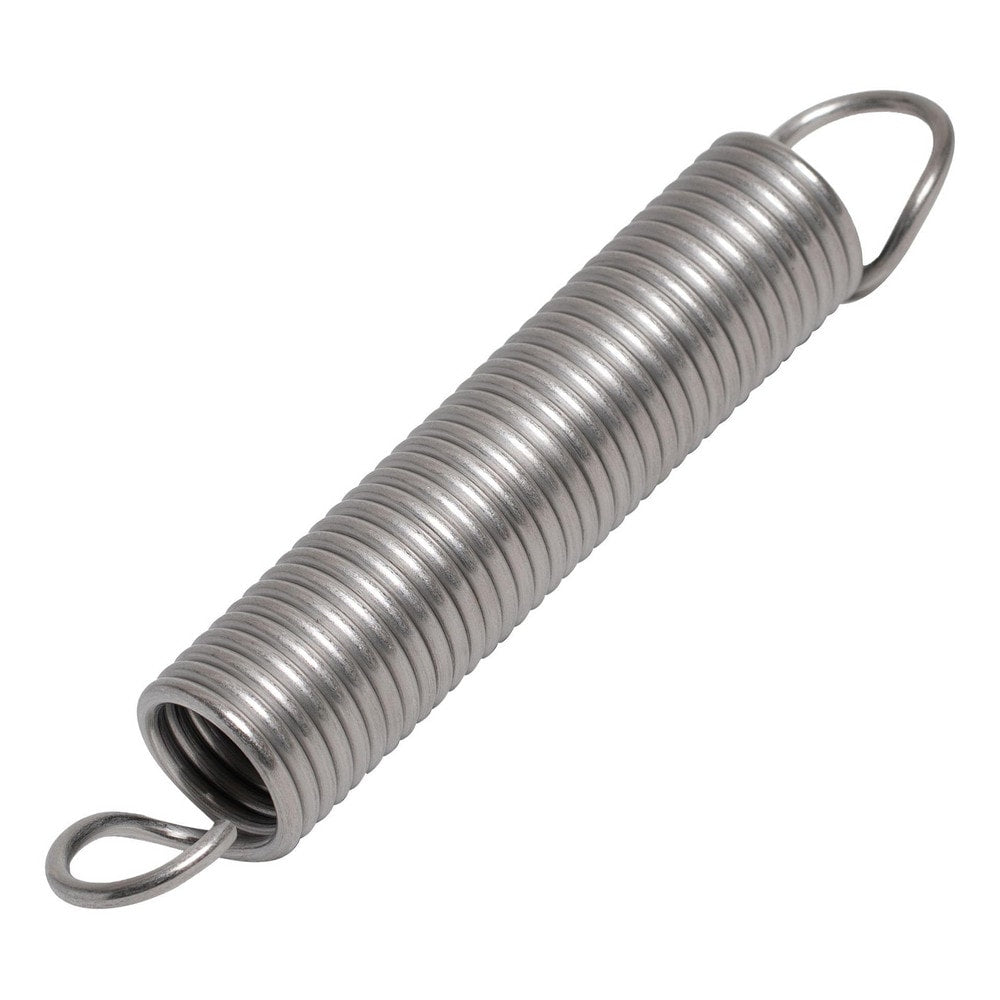

Extension Springs; End Type: Full Twist Loop; Outside Diameter (mm): 5.0000; Spring Rate: 2.6000; Material: Stainless Steel; Overall Length (Decimal Inch): 1.9060
Item #: 02996445
Brand: Associated Spring Raymond
Model #: MCEM0500700047S
Product Specifications
| End Type | Full Twist Loop |
| Outside Diameter (mm) | 5.0000 |
| Spring Rate | 2.6000 |
| Material | Stainless Steel |
| Overall Length (Decimal Inch) | 1.9060 |
| Initial Tension (N) | 3.9 |
| Maximum Extended Length (mm) | 79.88 |
| Free Length (mm) | 47.100 |
| Inside Hook Length (Fractional Inch) | 1-27/32 |
| Standards | EN 10270-3; JIS G4314 SUS 302; ASTM A313 |
| Finish/Coating | Uncoated |
| Wire Size (mm) | 0.70 |
| UNSPSC Code | 31161907 |
