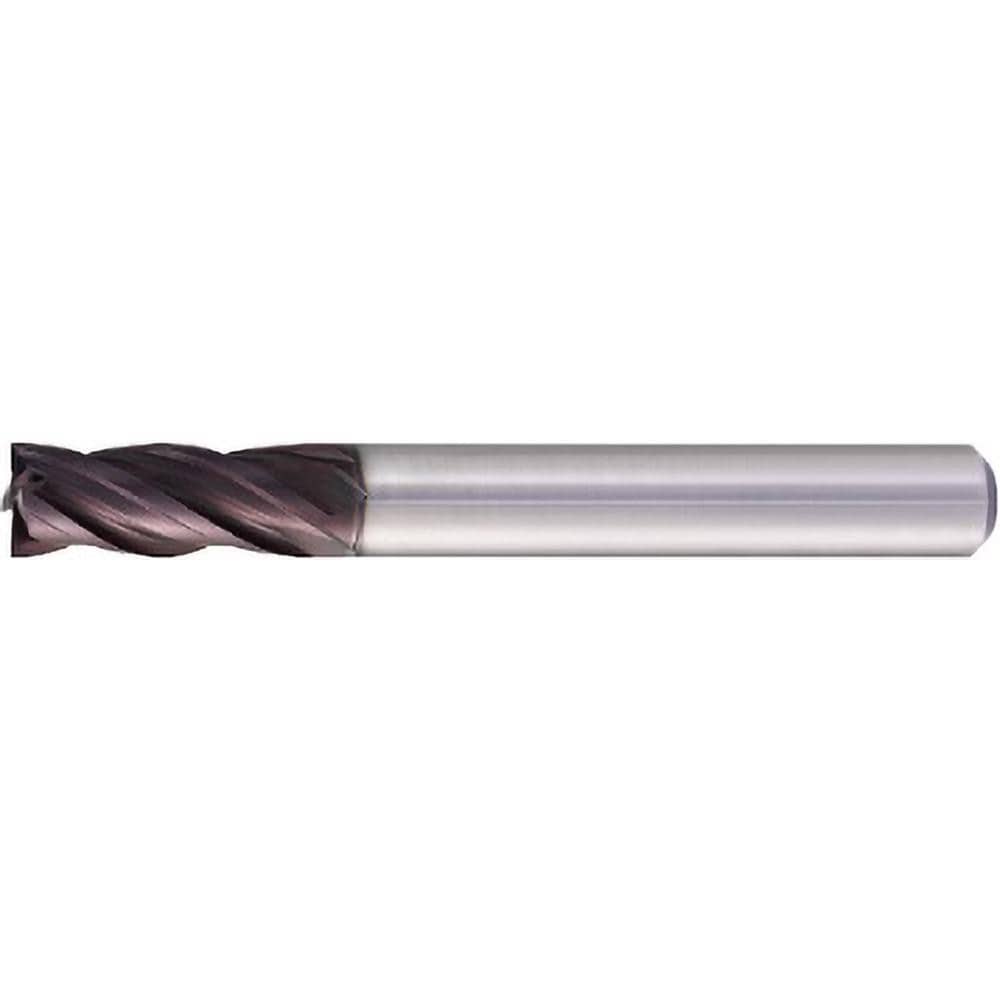

Square End Mill: 12.00 mm Dia, 30.00 mm LOC, 4 Flute, Solid Carbide
Item #: 42104158
Brand: Mitsubishi
Model #: 518539
Product Specifications
| Mill Diameter (mm) | 12.00 |
| Mill Diameter (Decimal Inch) | 0.4724 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 1.1811 |
| Length of Cut (mm) | 30.00 |
| Shank Diameter (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Overall Length (mm) | 90.00 |
| Overall Length (Decimal Inch) | 3.5433 |
| Single Or Double End | Single |
| Coating/Finish Family | AlTiSiN |
| Centercutting | No |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 35-38 |
| Primary Workpiece Material | Steel; Hardened Materials |
| Primary Workpiece Material Code | P; H |
| Secondary Workpiece Material | Steel |
| Secondary Workpiece Material Code | P |
| Coating/Finish | AlTiSiN |
| Variable Helix | Yes |
| Variable Index | Yes |
| Chipbreaker | No |
| Flute Type | Helical |
| Shank Type | Straight |
| Material Grade | Carbide |
| Length Type | Medium |
| Neck Length (Decimal Inch) | 1.1811 |
| Neck Length (mm) | 30.00 |
| Mill Diameter Tolerance | 0; -0.020 |
| Shank Diameter Tolerance | h6 |
| Series | VF Endmill VF4MV |
| System Of Measurement | Metric |
| UNSPSC Code | 27112803 |
