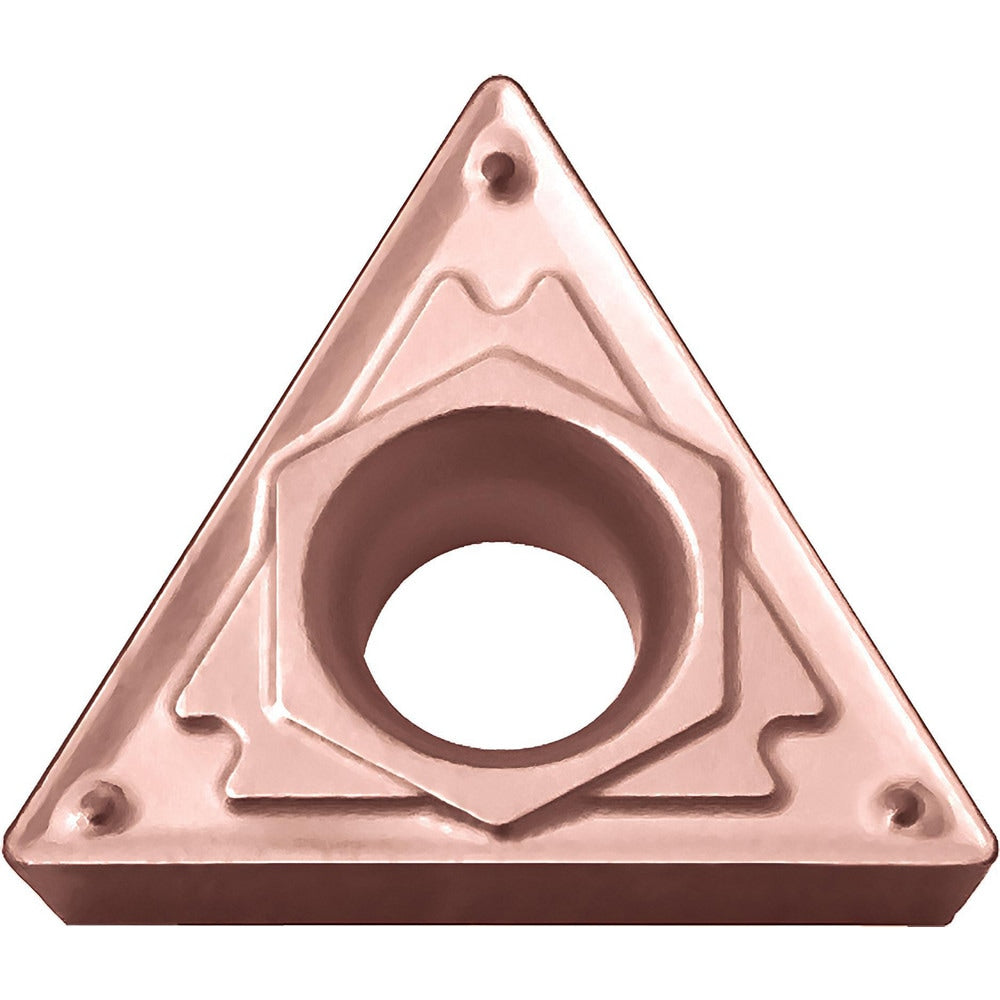

Turning Insert: TCMT110204HQ CA320, Carbide
Item #: 28465060
Brand: Kyocera
Model #: TME05871
Product Specifications
| ANSI Insert Code | TCMT2151 |
| ISO Insert Code | TCMT110204 |
| Relief Angle | 7 |
| Insert Style | TCMT |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Included Angle | 60 |
| Manufacturer Grade | CA320 |
| Coating/Finish | TiCN; Titanium; Al2O3 |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Series | ISOI |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Insert Material | Carbide |
| Insert Shape | T - Triangle |
| Chip Breaker Operation | Medium Machining; Finishing |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 3 |
| Insert Shape Code | T |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Maximum Depth of Cut (Decimal Inch) | 0.1445 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.4000 - 0.5000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.4334 |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Iso Code | TCMT110204HQ |
| Manufacturers Catalog Number | TME05871 |
| Material Grade | K20; K30; K10 |
| Coating Classification | CVD |
| Chip Breaker | HQ |
| Rake Angle | 15 |
| Cutting Edge Style | Honed |
| Industry Standard Number | TCMT2151HQCA320 |
| Width (Decimal Inch - 4 Decimals) | 0.4334 |
| Multi-Use Tool | No |
| Full Radius | No |
| Multi-Use Application | External Turning |
| ANSI Size Code | 2151 |
| ISO Size Code | 110204 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 2151 |
