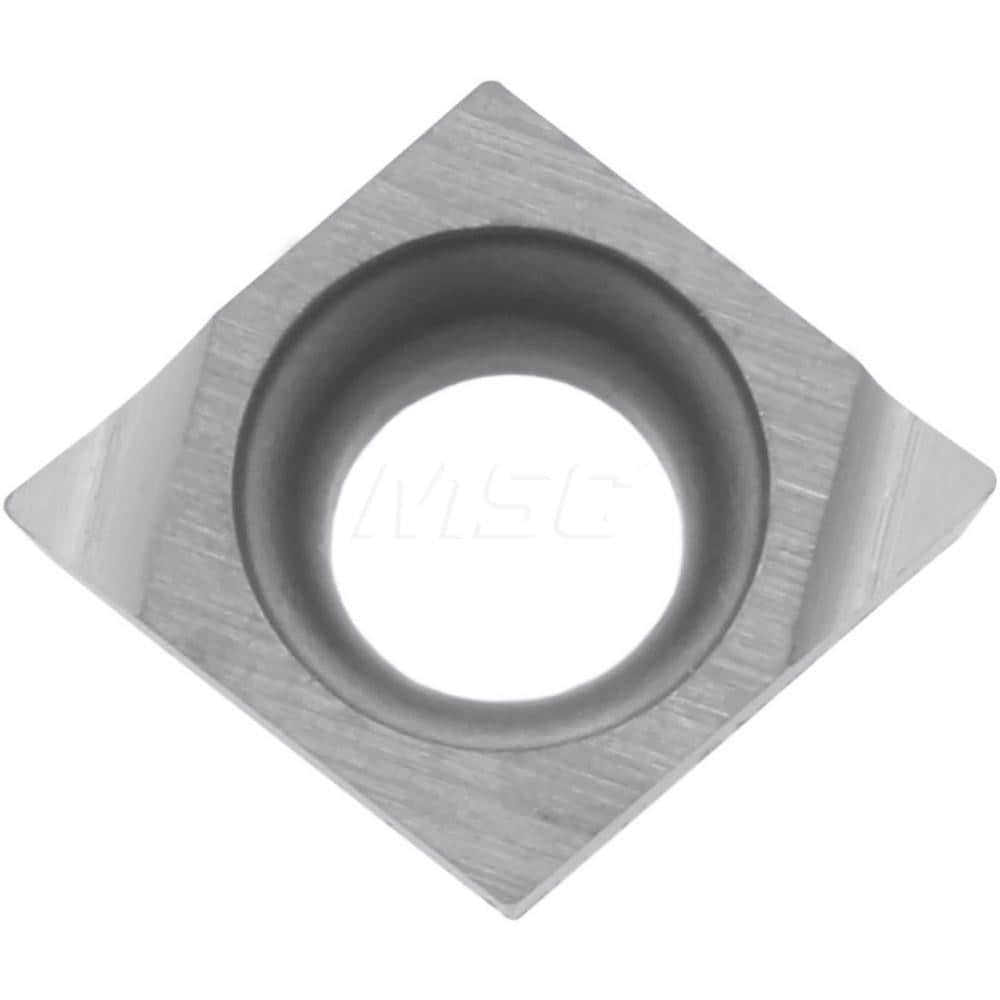

Boring Inserts; Insert Style: CCET; Insert Size Code: 141102; Insert Material: Cermet; Material Grade: P01, P10; Manufacturer Grade: TN610
Item #: 18246934
Brand: Kyocera
Model #: TSS01013
Product Specifications
| Insert Style | CCET |
| Insert Size Code | 141102 |
| Insert Material | Cermet |
| Material Grade | P01; P10 |
| Manufacturer Grade | TN610 |
| Inscribed Circle (Decimal Inch) | 0.1690 |
| Hole Diameter (Decimal Inch) | 0.0906 |
| Insert Holding Method | Screw |
| Insert Hand | Left Hand |
| Corner Radius (Decimal Inch) | 0.0040 |
| Corner Radius (Inch) | 1/256 |
| Relief Angle | 7 |
| Rake | Positive |
| Chipbreaker | F |
| Series | ISOI |
| Coating Process | Uncoated |
| Included Angle | 80 |
| Insert Shape | Diamond |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Iso Code | CCET040101ML-F |
| Rake Angle | 15 |
| Manufacturers Catalog Number | TSS01013 |
| Length (Decimal Inch - 4 Decimals) | 0.1690 |
| Width (Decimal Inch - 4 Decimals) | 0.169 |
| Coating/Finish | TiCN |
| UNSPSC Code | 23242107 |
| Maximum Depth of Cut (Decimal Inch) | 0.0563 |
| Insert Style | CCET |
| Insert Size Code | 141102 |
| Insert Material | Cermet |
| Material Grade | P01; P10 |
| Manufacturer Grade | TN610 |
| Inscribed Circle (Decimal Inch) | 0.1690 |
| Hole Diameter (Decimal Inch) | 0.0906 |
| Insert Holding Method | Screw |
| Insert Hand | Left Hand |
| Corner Radius (Decimal Inch) | 0.0040 |
| Corner Radius (Inch) | 1/256 |
| Relief Angle | 7 |
| Rake | Positive |
| Chipbreaker | F |
| Series | ISOI |
| Coating Process | Uncoated |
| Included Angle | 80 |
| Insert Shape | Diamond |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Iso Code | CCET040101ML-F |
| Rake Angle | 15 |
| Manufacturers Catalog Number | TSS01013 |
| Length (Decimal Inch - 4 Decimals) | 0.1690 |
| Width (Decimal Inch - 4 Decimals) | 0.169 |
| Coating/Finish | TiCN |
| UNSPSC Code | 23242107 |
| Maximum Depth of Cut (Decimal Inch) | 0.0563 |
| MSC Part # | 18246934 |
| Mfr Part # | TSS01013 |
| Country of Origin Country of Origin is subject to change | VARIOUS |
