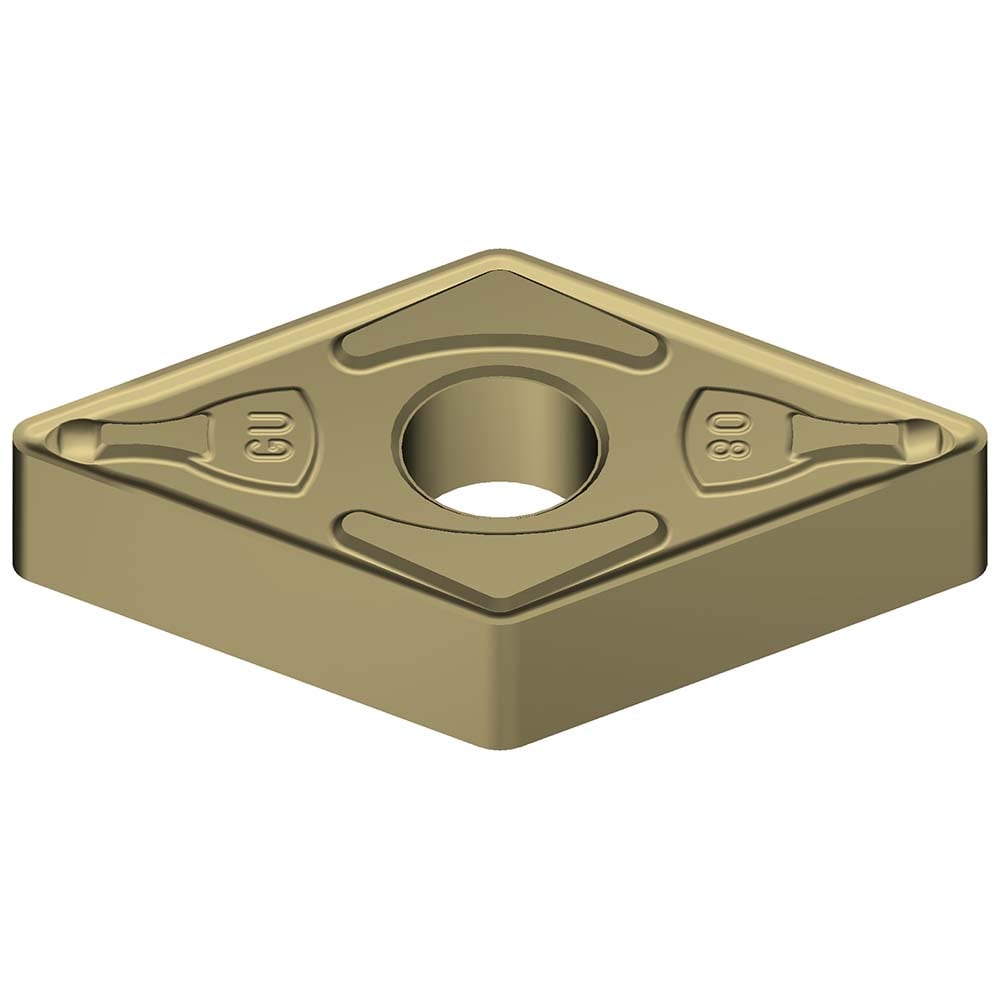

Turning Insert: DNMG432EGU AC8020P, Carbide
Item #: 19640341
Brand: Sumitomo
Model #: 19W1339
Product Specifications
| ANSI Insert Code | DNMG432 |
| ISO Insert Code | DNMG150408 |
| Relief Angle | 0 |
| Insert Style | DNMG |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 55 |
| Manufacturer Grade | AC8020P |
| Coating/Finish | Absotech |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Series | AC8020P |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Insert Material | Carbide |
| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Chip Breaker Operation | Light Machining; Medium Machining |
| Grade Characteristics | Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Negative |
| Insert Shape Code | D |
| Insert Holding Method | Pin; Clamp |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.6000 - 0.6500 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.6102 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Steel |
| Iso Code | DNMG150408N-GU |
| Manufacturers Catalog Number | DNMG432EGU-AC8020P |
| Material Grade | P20 |
| Chip Breaker | EGU |
| ANSI Size Code | 432 |
| ISO Size Code | 150408 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 432 |
