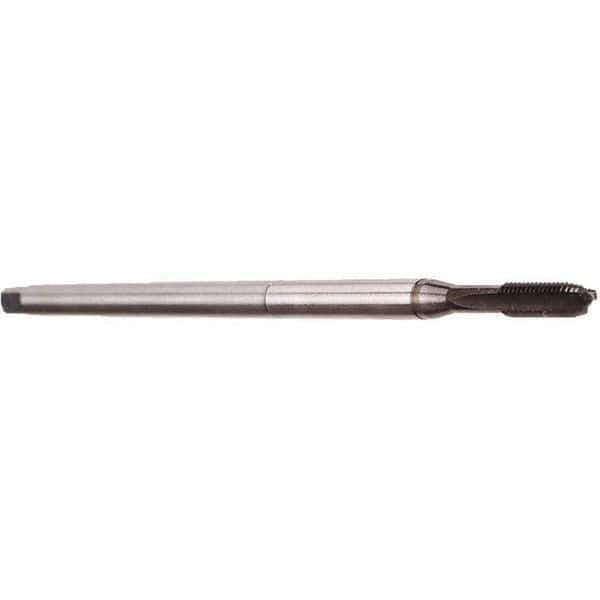

Emuge - M4x0.70 3 Flute Nitride Finish Cobalt Hand Extension Tap - Modified Bottoming Chamfer, 125mm OAL, 6HX Class of Fit, Series Rekord A
Item #: 65944324
Brand: Emuge
Model #: B2100501.0040
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming chamfers similar to bottoming chamfers, but longer and have more teeth. They are used for threading to the bottom of blind holes and constructed of 2 to 2-1/2 threads.
Hand taps are used to cut threads in blind or through holes. They are used by hand or in general purpose machine operations.
Nitride is a thin, hard shell coating that supports the surface hardness of high speed tools. It is commonly used on ferrous and non-ferrous metals including aluminum and cast iron.
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
| Product Specifications | |
|---|---|
| Thread Size | M4x0.70 |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.921 |
| Chamfer | Modified Bottoming |
| Class of Fit | 6HX |
| Number of Flutes | 3 |
| Tap Type | Hand |
| Finish/Coating | Nitride |
| Material | Cobalt |
| Thread Length (Decimal) | 0.5118 |
| Thread Direction | Right Hand |
| Square Size (Decimal Inch) | 0.1339 |
| Series/List | Rekord A |
| Shank Size Type | Regular |
