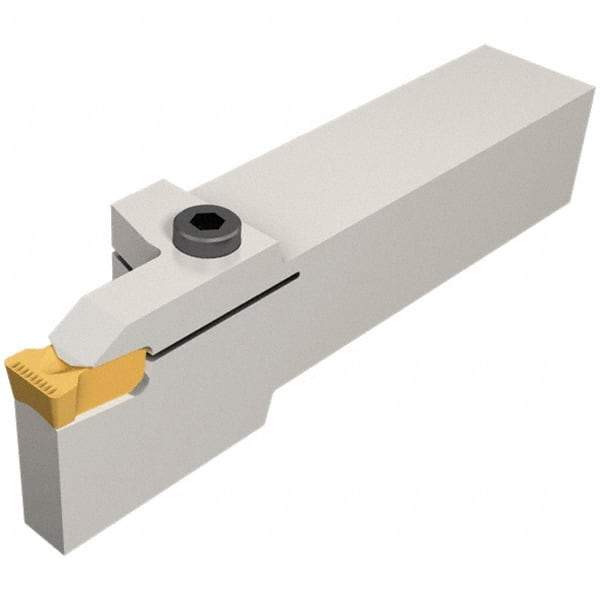

Iscar - GHD, External, Right Hand, 38mm Max Depth of Cut, 13 to 17.4mm Groove Width, Indexable Grooving Tool Holder - TIGER Insert Compatibility, 40mm Shank Height, 40mm Shank Width, 170mm OAL
Item #: 65767899
Brand: Iscar
Model #: 2861040
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.4961 |
| Maximum Depth of Cut (mm) | 38.00 |
| Minimum Groove Width (Decimal Inch) | 0.5118 |
| Minimum Groove Width (mm) | 13.00 |
| Maximum Groove Width (mm) | 17.40 |
| Maximum Groove Width (Decimal Inch) | 0.6850 |
| Overall Length (mm) | 170.00 |
| Overall Length (Decimal Inch) | 6.6929 |
| Toolholder Style | GHD |
| Insert Compatibility | TIGER |
| Shank Height (mm) | 40.00 |
| Shank Height (Decimal Inch) | 1.5748 |
| Shank Width/Diameter (mm) | 40.00 |
| Shank Width/Diameter (Decimal Inch) | 1.5748 |
| Series | Cut Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Profiling; Turning |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 34.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.3386 |
| Head Length (mm) | 59.00 |
| Head Length (Decimal Inch) | 2.3228 |
| Shank Length (mm) | 111.00 |
| Shank Length (Decimal Inch) | 4.3701 |
| Complete Insert Compatibility | TIGER 1453-152; TIGER 1453-152-CW; TIGER 16.63-1.52; TIGER 1740-200 |
