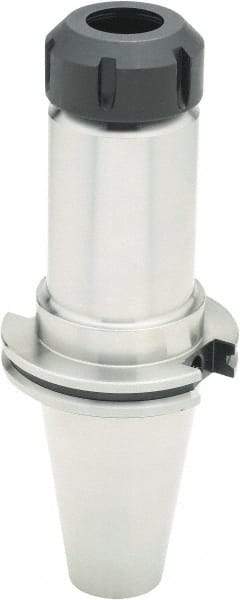

Parlec - 3mm to 30mm Capacity, 6.22" Projection, CAT50 Taper Shank, ER40 Collet Chuck - 10.22" OAL
Item #: 65444358
Brand: Parlec
Model #: C50-40ERC622
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER40 |
| Shank Type | Taper Shank |
| Taper Size | CAT50 |
| Projection (Decimal Inch) | 6.2200 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.1181 |
| Minimum Collet Capacity (mm) | 3.00 |
| Maximum Collet Capacity (mm) | 30.00 |
| Maximum Collet Capacity (Decimal Inch) | 1.1811 |
| Overall Length (Decimal Inch) | 10.2200 |
| Actuator Type | Wrench |
| Type | ER Coolant Collet |
| Nose Diameter (Decimal Inch) | 2.4700 |
| PSC Code | 5136 |
| Balanced to (RPM) | 20000 |
| TIR (Decimal Inch) | 0.0002 |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (Decimal Inch) | 2.4700 |
