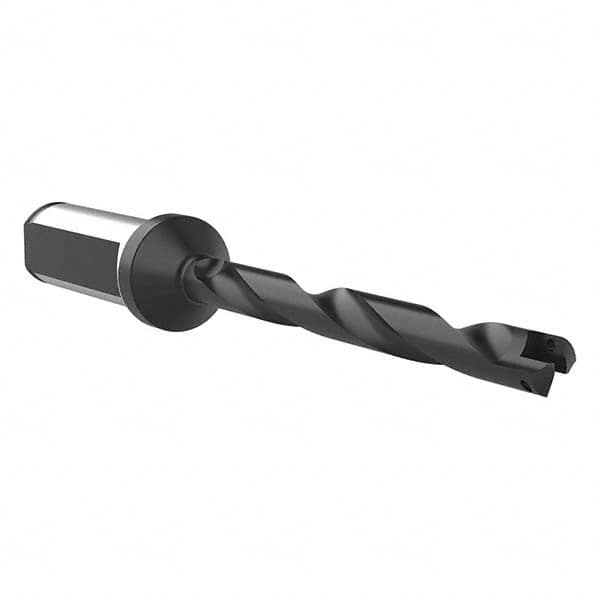

Allied Machine and Engineering - 9.5mm to 11.07mm Diam 86mm Max Depth Helical Flute Spade Drill
Item #: 12329264
Brand: Allied Machine and Engineering
Model #: 245Y0H-20FM
Features and Benefits
Helical flutes are used for vertical machining center applications.
| Product Specifications | |
|---|---|
| Series | Y |
| Minimum Drill Diameter (mm) | 9.50 |
| Minimum Drill Diameter (Decimal Inch) | 0.3740 |
| Maximum Drill Diameter (mm) | 11.07 |
| Maximum Drill Diameter (Decimal Inch) | 0.4360 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (mm) | 20.00 |
| Spade Drill Length | Standard Plus Length |
| Overall Length (mm) | 165.40 |
| Maximum Drill Depth (mm) | 86.00 |
| Flute Type | Helical Flute |
| Body Length (mm) | 115.40 |
| Shank Length (mm) | 50.00 |
| Series Code/Seat Size | Y |
| Through Coolant | Yes |
| Coolant Hole Thread Type | NPT |
| Shank End Coolant Hole Thread Size (Inch) | 1/8 |
