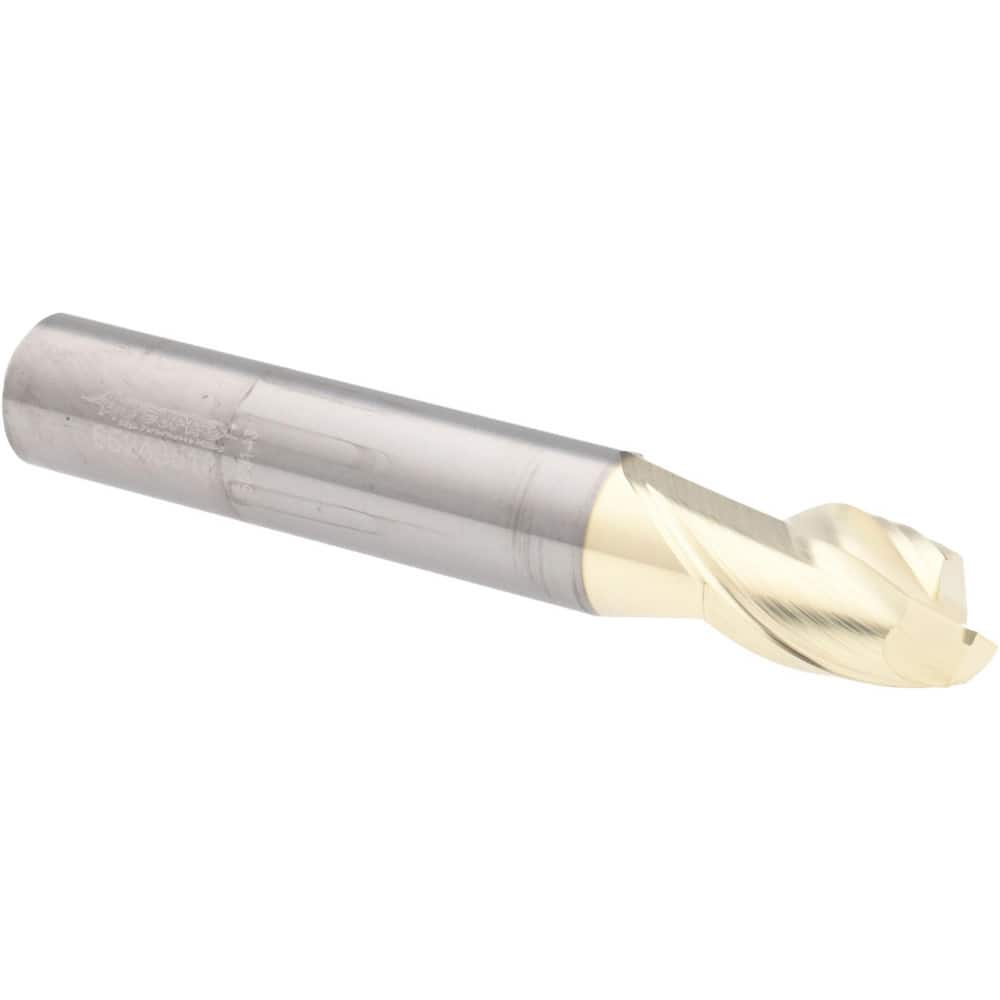

Corner Radius End Mill: 3/8″ Dia, 1/2″ LOC, 0.015″ Radius, 2 Flutes, Solid Carbide 2-1/2″ OAL, 3/8″ Shank Dia, 45 ° Helix, ZrN Coated, Corner Radius End, Centercutting
Item #: 65249518
Brand: Accupro
Model #: 237N03750C5
Product Specifications
| Mill Diameter (Decimal Inch) | 0.3750 |
| Mill Diameter (Inch) | 3/8 |
| Length of Cut (Inch) | 1/2 |
| Corner Radius (Decimal Inch) | 0.0150 |
| Number Of Flutes | 2 |
| End Mill Material | Solid Carbide |
| Extended Reach | No |
| End Type | Corner Radius |
| Length Type | Regular |
| Flute Type | Spiral |
| Helix Angle | 45 |
| Centercutting | Yes |
| Variable Helix | No |
| Shank Diameter (Inch) | 3/8 |
| Overall Length (Inch) | 2-1/2 |
| Mill Diameter Tolerance | +0.000000 to -0.002000 in |
| Shank Diameter Tolerance | +0.0001/-0.0004 in |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Material Grade | Micrograin |
| Single Or Double End | Single |
| Coating/Finish | ZrN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.5000 |
