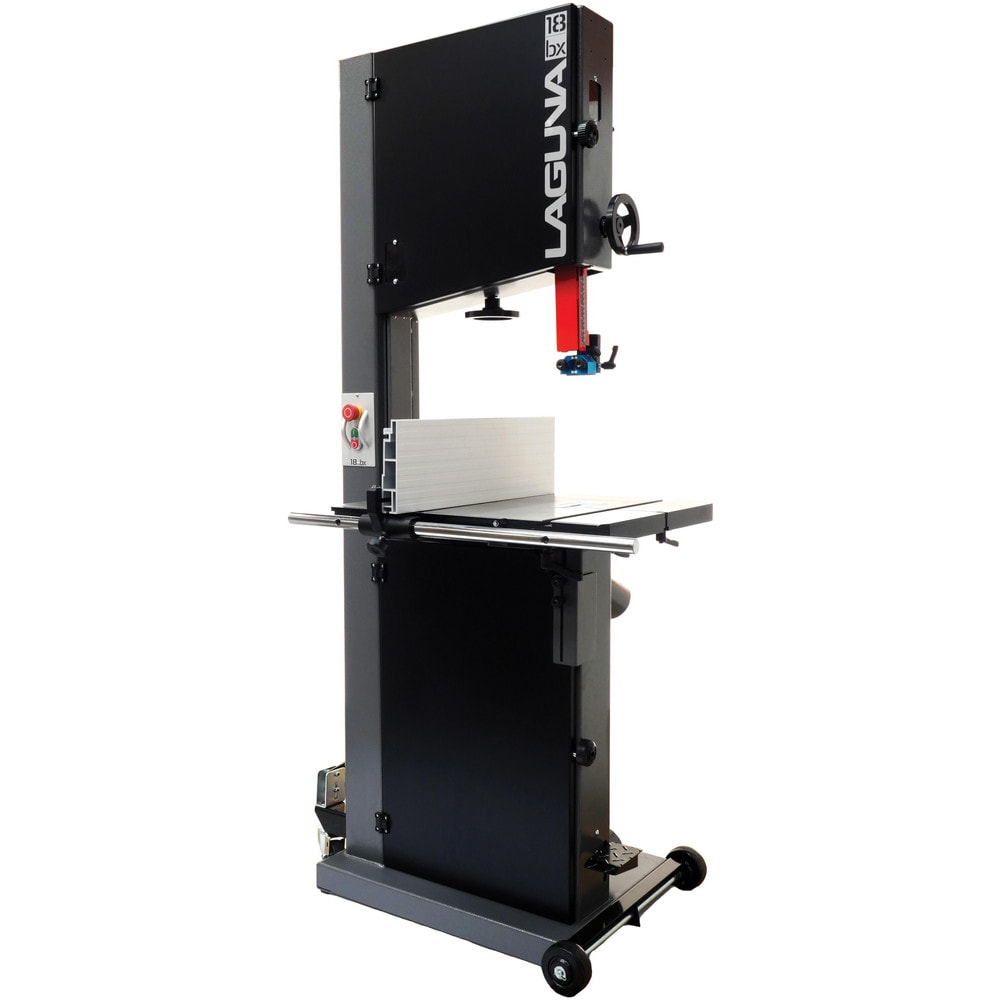

Vertical Bandsaws; Drive Type: Belt; Throat Capacity (Decimal Inch): 18.2187; Throat Capacity (Inch): 18-7/32; Throat Depth (Inch): 18-7/32; Height Capacity (Inch): 16; Phase: Single; Horsepower: 3.0000; Minimum Blade Speed: 4685
Item #: 82744780
Brand: Laguna
Model #: MBAND18BX2203
Product Specifications
| Drive Type | Belt |
| Throat Capacity (Decimal Inch) | 18.2187 |
| Throat Capacity (Inch) | 18-7/32 |
| Throat Depth (Inch) | 18-7/32 |
| Height Capacity (Inch) | 16 |
| Phase | Single |
| Horsepower | 3.0000 |
| Minimum Blade Speed | 4685 |
| Maximum Blade Speed | 4685 |
| Blade Width (Inch - 0 Decimals) | 1/8 - 1-1/4 |
| Blade Length (Feet) | 12.08 |
| Blade Length (Decimal Inch) | 144-1/2 |
| Blade Wheel Diameter (Inch) | 14 |
| Blade Guide Type | Laguna Ceramic |
| Capacity Under Guides | 16 in |
| Floor to Table Height (Inch) | 38 |
| Table Length (Inch) | 26 |
| Table Width (Inch) | 20 |
| Table Tilt Left (Degrees) | 6.00 |
| Table Tilt Right (Degrees) | 45.00 |
| Table Feed Operation | Manual |
| Frequency | 60 |
| Voltage | 220V |
| Base Width (Inch) | 27 |
| Base Depth (Inch) | 19-11/16 |
| Overall Height (Inch) | 77-3/4 |
| Overall Depth (Inch) | 29-7/8 |
| Overall Length (Inch) | 36-3/16 |
| Includes | Cast Table Trunnion.; Foot Brake; Tracking Window; Blade Tension Gauge With Window; Laguna Ceramic Guides; Cast Iron Wheels; Quick Tension Release |
| Standards | CSA |
| Special Item Information | Foot Brake; Dual Dust Ports; Tilting Table; Laguna Ceramic Guides; Blade Tracking Window; Quick Release For Blade Tension; Blade Tension Window. |
| Certification | CSA |
| Warranty | 2 Year |
| Maximum Blade Working Height | 16 |
| Table Stroke | 20 |
| Number Of Slots | 1 |
| UNSPSC Code | 23231100 |
| Product Service Code | 3210 |
| Country of Origin | Taiwan |
