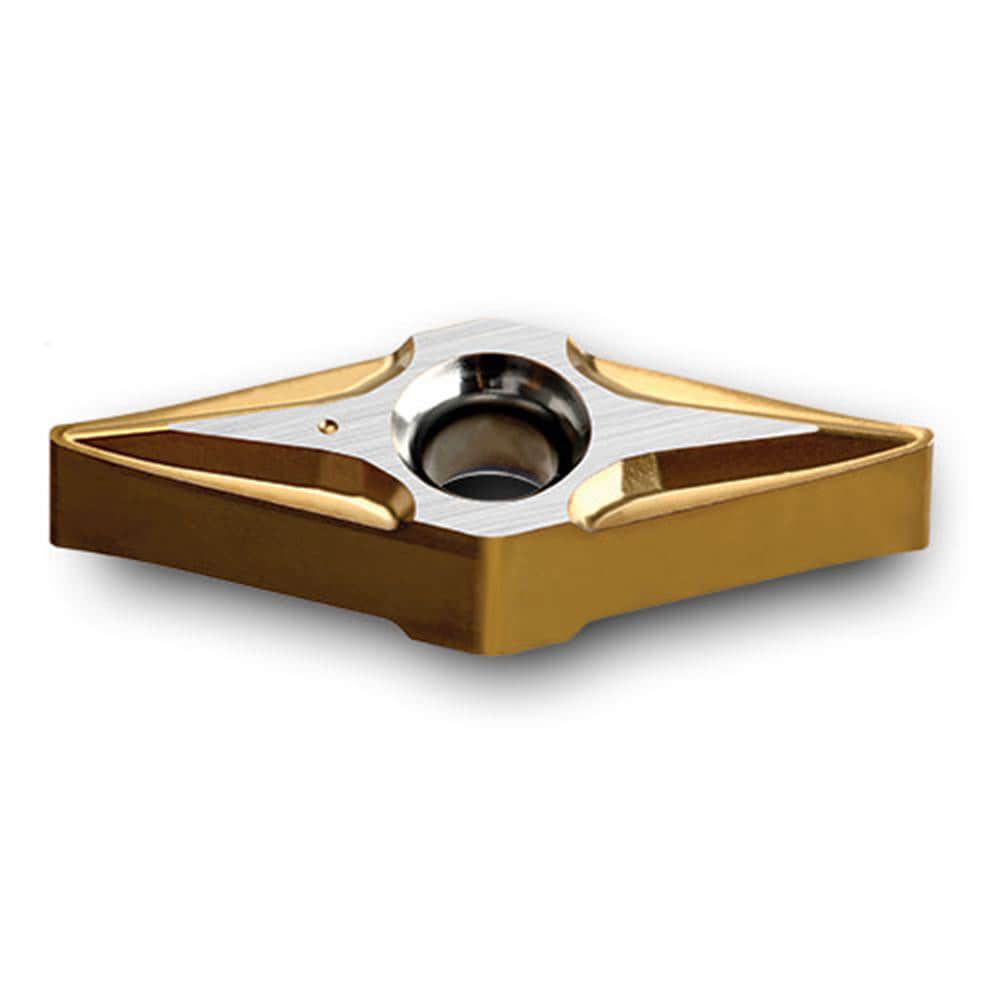

Turning Insert: VNGX2.530.5ML TT5080, Carbide
Item #: 29819133
Brand: Ingersoll Cutting Tools
Model #: 6174455
Product Specifications
| ANSI Insert Code | VNGX2.530.5 |
| ISO Insert Code | VNGX130402 |
| Relief Angle | 0 |
| Insert Style | VNGX |
| Corner Radius (Decimal Inch) | 0.0080 |
| Included Angle | 35 |
| Manufacturer Grade | TT5080 |
| Coating/Finish | AlTiN; TiN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Series | VNGX |
| Inscribed Circle (Decimal Inch) | 0.3130 |
| Insert Material | Carbide |
| Insert Shape | V - Diamond (Rhombic) 35-Deg |
| Chip Breaker Operation | Medium Machining; Roughing |
| Grade Characteristics | Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Negative |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | V |
| Maximum Depth of Cut (Decimal Inch) | 0.0500 |
| Insert Holding Method | Clamp |
| Clearance Code | N |
| Tolerance Code | G |
| Coating Process | PVD |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.5460 |
| Primary Workpiece Material | Superalloy; Stainless Steel; Titanium |
| Primary Workpiece Material Code | S; M |
| Iso Code | VNGX130402ML TT5080 |
| Chip Breaker | ML |
| ANSI Size Code | 2.530.5 |
| ISO Size Code | 130402 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 2.530.5 |
