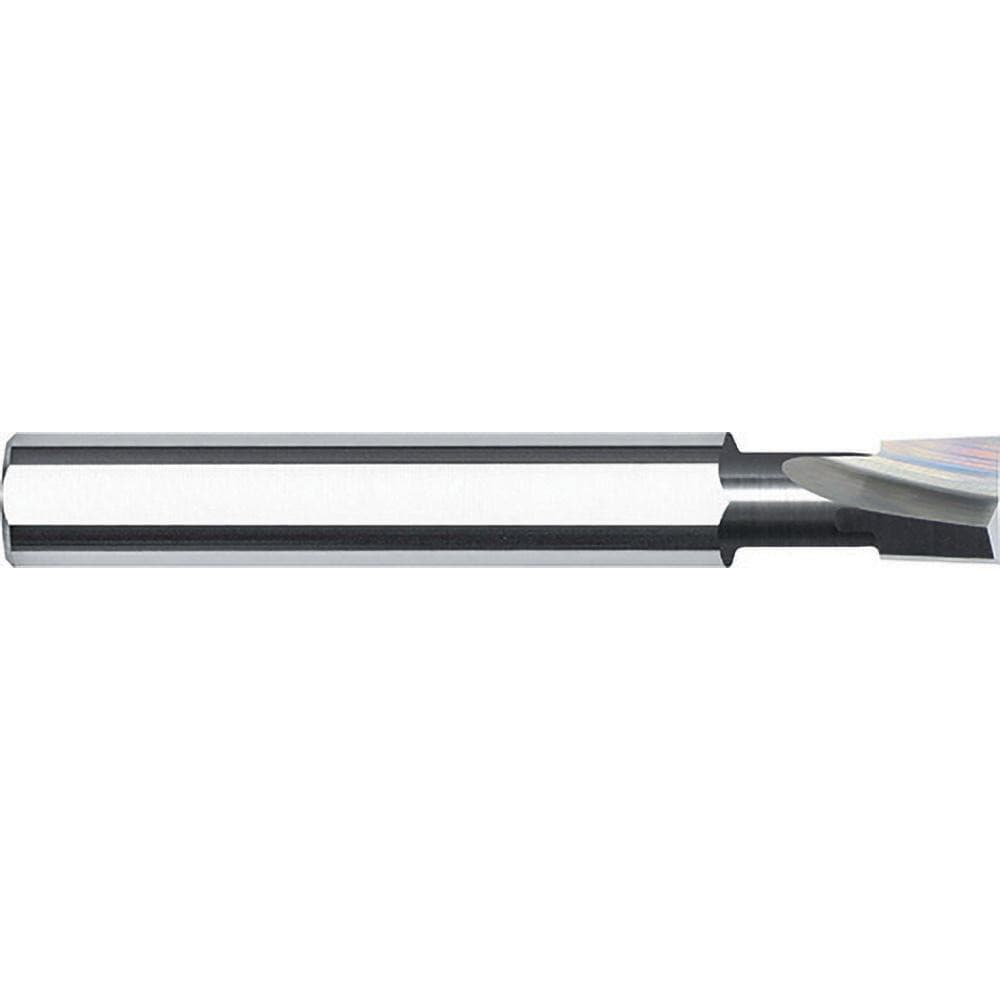

Boring Bar: 5/16" Min Bore Dia, 3/4" Max Bore Depth, Right Hand, 5/16" Shank Dia, Micrograin Solid Carbide
Item #: 30657365
Brand: Internal Tool
Model #: 54-1120
Product Specifications
| Boring Bar Type | Boring |
| Cutting Direction | Right Hand |
| Minimum Bore Diameter (Decimal Inch) | 0.3120 |
| Material | Solid Carbide |
| Material Grade | Micrograin |
| Maximum Bore Depth (Decimal Inch) | 0.7500 |
| Projection (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 5/16 |
| Overall Length (Inch) | 2-1/2 |
| Bar End Angle | 90 |
| Series | 54 |
| Maximum Bore Depth (Inch) | 3/4 |
| Minimum Bore Diameter (Inch) | 5/16 |
| Overall Length (Decimal Inch) | 2.5000 |
| Primary Workpiece Material | Bronze; Aluminum; Stainless Steel; Brass; Cast Iron; Titanium; Plastic; Nickel; Magnesium; Copper; Steel |
| Relief Angle | 4 |
| UNSPSC Code | 23241601 |
