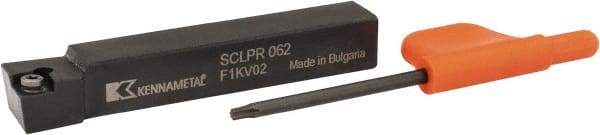

Kennametal - SCLP, Right Hand Cut, 5° Lead Angle, 3/8" Shank Height x 3/8" Shank Width, Positive Rake Indexable Turning Toolholder - 2-1/2" OAL, CP..21.5. Insert Compatibility, Series Screw-On
Item #: 64922347
Brand: Kennametal
Model #: 1095594
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | SCLP |
| Rake | Positive |
| Series | Screw-On |
| Lead Angle | 5 |
| Shank Width (Inch) | 3/8 |
| Shank Width (Decimal Inch) | 0.3750 |
| Shank Height (Inch) | 3/8 |
| Shank Height (mm) | 9.53 |
| Shank Height (Decimal Inch) | 0.3750 |
| Overall Length (Inch) | 2-1/2 |
| Overall Length (mm) | 63.50 |
| Overall Length (Decimal Inch) | 2.5000 |
| Insert Compatibility | CP..21.5. |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 12.70 |
| Back of Bar to Cutting Edge (Inch) | 1/2 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5000 |
| Head Length (mm) | 11.11 |
| Head Length (Decimal Inch) | 0.4400 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Toolholder Material | Steel |
