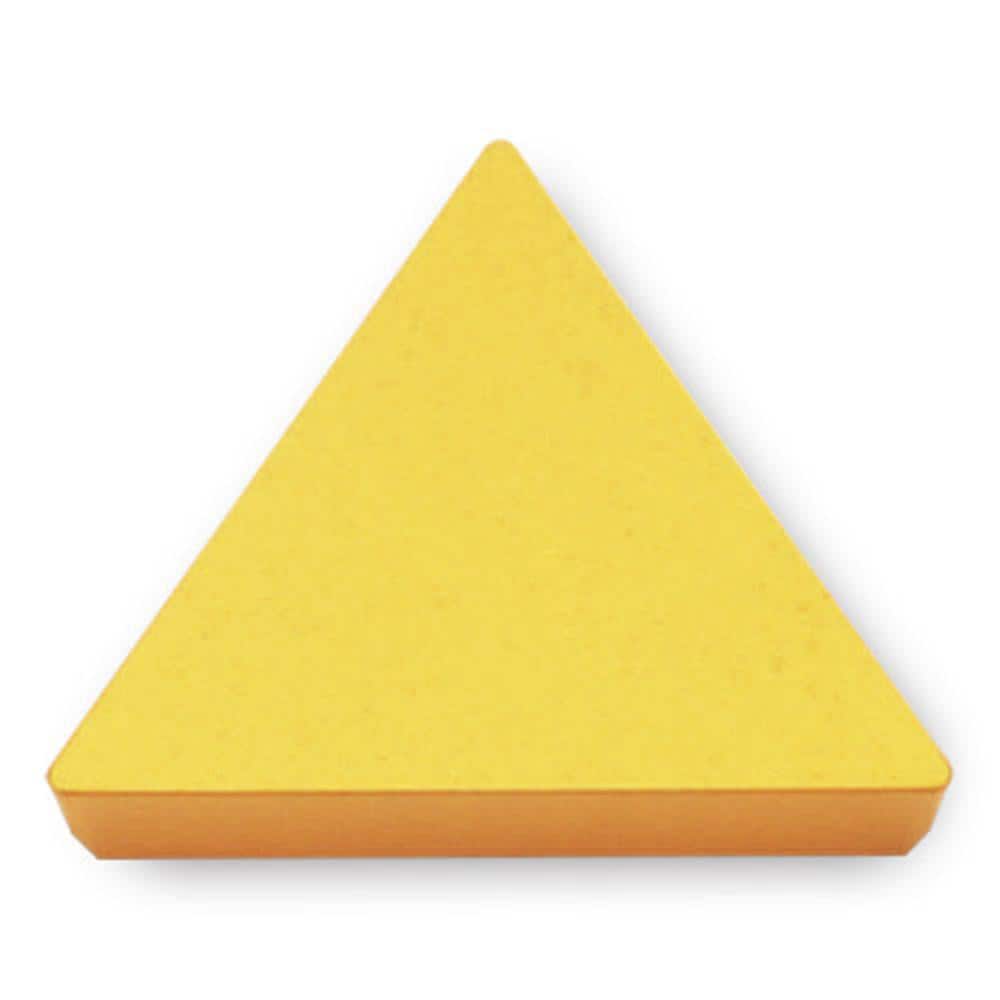

Turning Insert: TPG542 TT8115B, Carbide
Item #: 29811403
Brand: Ingersoll Cutting Tools
Model #: 6212587
Product Specifications
| ANSI Insert Code | TPGN542 |
| ISO Insert Code | TPGN270608 |
| Relief Angle | 11 |
| Insert Style | TPGN |
| Corner Radius (Decimal Inch) | 0.0310 |
| Included Angle | 60 |
| Manufacturer Grade | TT8115B |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/4 |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Series | TPGN |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Inscribed Circle (Inch) | 5/8 |
| Insert Material | Carbide |
| Insert Shape | T - Triangle |
| Chip Breaker Operation | Flat Top |
| Grade Characteristics | Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 3 |
| Insert Shape Code | T |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Insert Holding Method | Clamp |
| Width (Inch) | 1 |
| Clearance Code | P |
| Tolerance Code | G |
| Coating Process | CVD |
| Rake | Positive |
| Insert Length (Decimal Inch) | 1.0830 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Iso Code | TPGN270608 TT8115B |
| Chip Breaker | Flat Top |
| Width (Decimal Inch - 4 Decimals) | 1.0000 |
| ANSI Size Code | 542 |
| ISO Size Code | 270608 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 542 |
