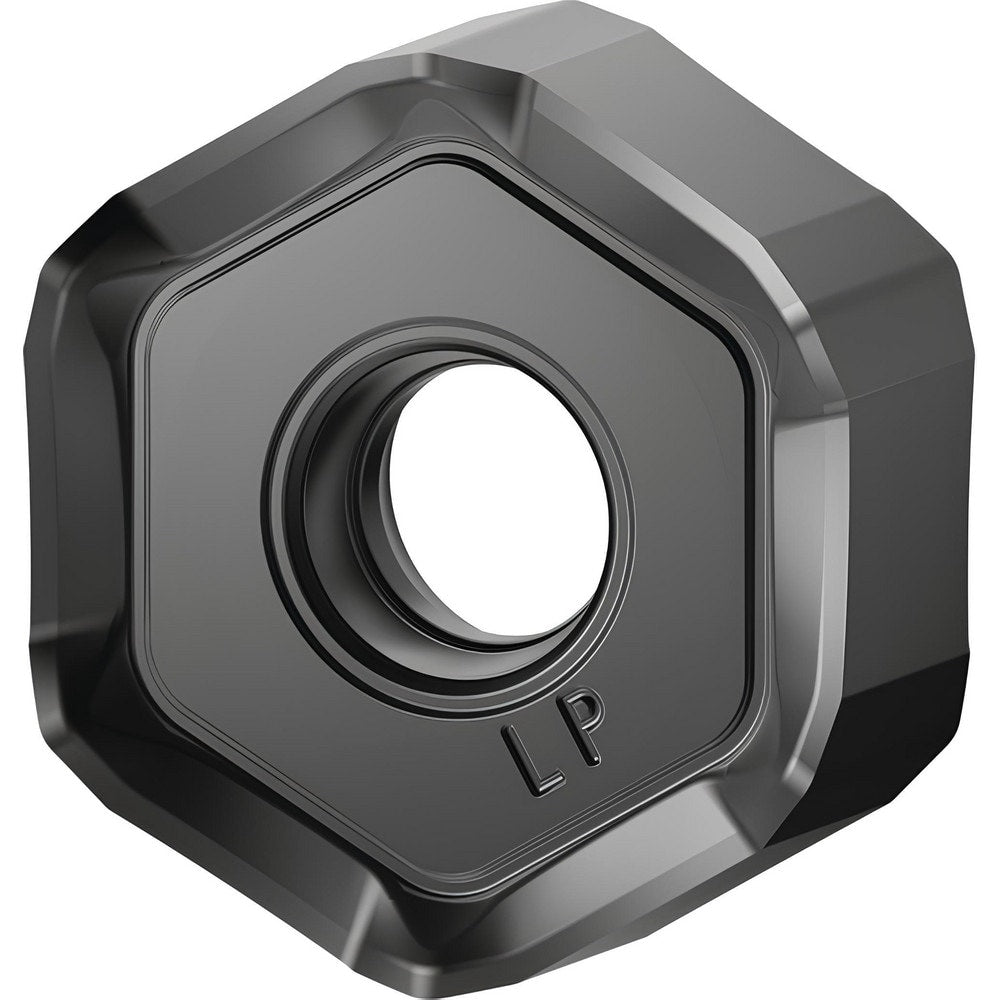

Milling Insert: HNPJ0905ANERLP KCPM40, Solid Carbide
Item #: 67206292
Brand: Kennametal
Model #: 7060936
Product Specifications
| Insert Style | HNPJ |
| Insert Size | 5 |
| Insert Material | Solid Carbide |
| Insert Shape | Hexagon |
| Manufacturer Grade | KCPM40 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Number Of Cutting Edges | 12 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2259 |
| Coating/Finish | AlCrN; TiAlN |
| Relief Angle | 0.00 |
| Insert Size Code | 535 |
| Width (Inch) | 5/8 |
| Length (Inch) | 5/8 |
| Inscribed Circle (Inch) | 5/8 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Thickness Range (Decimal Inch) | 0.2200 to 0.2350 |
| Corner Radius (Inch) | 3/64 |
| Inscribed Circle Range (Decimal Inch) | 0.6000 to 0.7000 |
| Length Range (Decimal Inch) | 0.6000 to 0.6500 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1770 |
| Series | HNPJ |
| Coating Process | PVD |
| Rake | Negative |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | HNPJ535ANERLP |
| Iso Code | HNPJ0905ANERLP |
| Standards | ISO; ANSI |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | HNPJ0905ANERLP |
| Cutter Series Compatibility | Dodeka |
| Chip Breaker | LP |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 120 |
| Width (Decimal Inch - 4 Decimals) | 0.6250 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6250 |
| Insert Style | HNPJ |
| Insert Size | 5 |
| Insert Material | Solid Carbide |
| Insert Shape | Hexagon |
| Manufacturer Grade | KCPM40 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Number Of Cutting Edges | 12 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2259 |
| Coating/Finish | AlCrN; TiAlN |
| Relief Angle | 0.00 |
| Insert Size Code | 535 |
| Width (Inch) | 5/8 |
| Length (Inch) | 5/8 |
| Inscribed Circle (Inch) | 5/8 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Thickness Range (Decimal Inch) | 0.2200 to 0.2350 |
| Corner Radius (Inch) | 3/64 |
| Inscribed Circle Range (Decimal Inch) | 0.6000 to 0.7000 |
| Length Range (Decimal Inch) | 0.6000 to 0.6500 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1770 |
| Series | HNPJ |
| Coating Process | PVD |
| Rake | Negative |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | HNPJ535ANERLP |
| Iso Code | HNPJ0905ANERLP |
| Standards | ISO; ANSI |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | HNPJ0905ANERLP |
| Cutter Series Compatibility | Dodeka |
| Chip Breaker | LP |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 120 |
| Width (Decimal Inch - 4 Decimals) | 0.6250 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6250 |
| MSC Part # | 67206292 |
| Mfr Part # | 7060936 |
| Country of Origin Country of Origin is subject to change | Germany |
