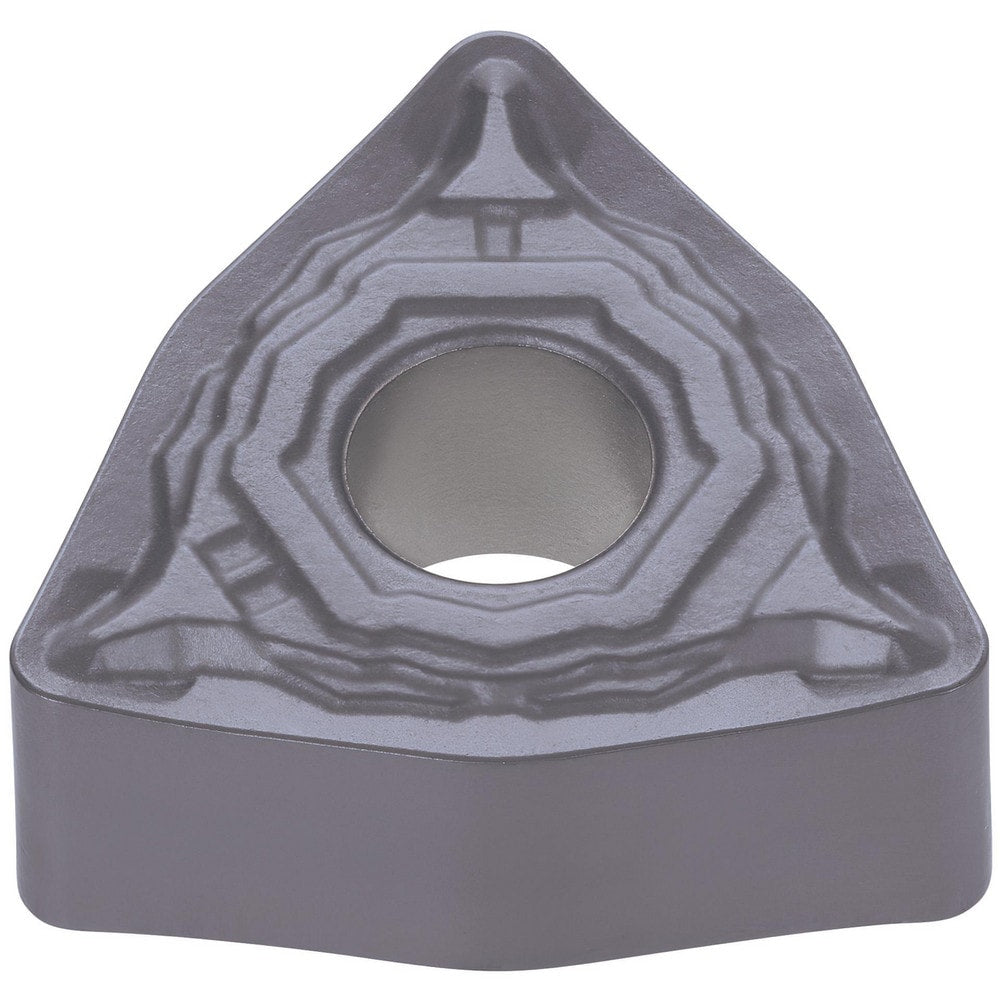

Turning Insert: WNMG333ETSF AH120, Carbide
Item #: 20872859
Brand: Tungaloy
Model #: 6793711
Product Specifications
| ANSI Insert Code | WNMG333 |
| ISO Insert Code | WNMG060412 |
| Relief Angle | 0 |
| Insert Style | WNMG |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Included Angle | 80 |
| Manufacturer Grade | AH120 |
| Coating/Finish | TiAlN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Series | WNMG*E-TSF |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Material | Carbide |
| Insert Shape | W - Trigon 80-Deg |
| Chip Breaker Operation | Finishing |
| Grade Characteristics | Steel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Negative |
| Number Of Cutting Edges | 6 |
| Insert Shape Code | W |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Maximum Depth of Cut (Decimal Inch) | 0.0590 |
| Insert Holding Method | Pin; Clamp |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.5000 - 0.6000 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.5120 |
| Primary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Iso Code | WNMG060412E-TSF AH120 |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 6793711 |
| Material Grade | M15; M25; P25; S10; P15; S25; K30; K15 |
| Coating Classification | PVD |
| Chip Breaker | TSF |
| Rake Angle | 13 |
| Cutting Edge Style | Sharp |
| Industry Standard Number | WNMG 333E TSF |
| Width (Decimal Inch - 4 Decimals) | 0.5120 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Facing; Turning; Boring |
| ANSI Size Code | 333 |
| ISO Size Code | 060412 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 333 |
