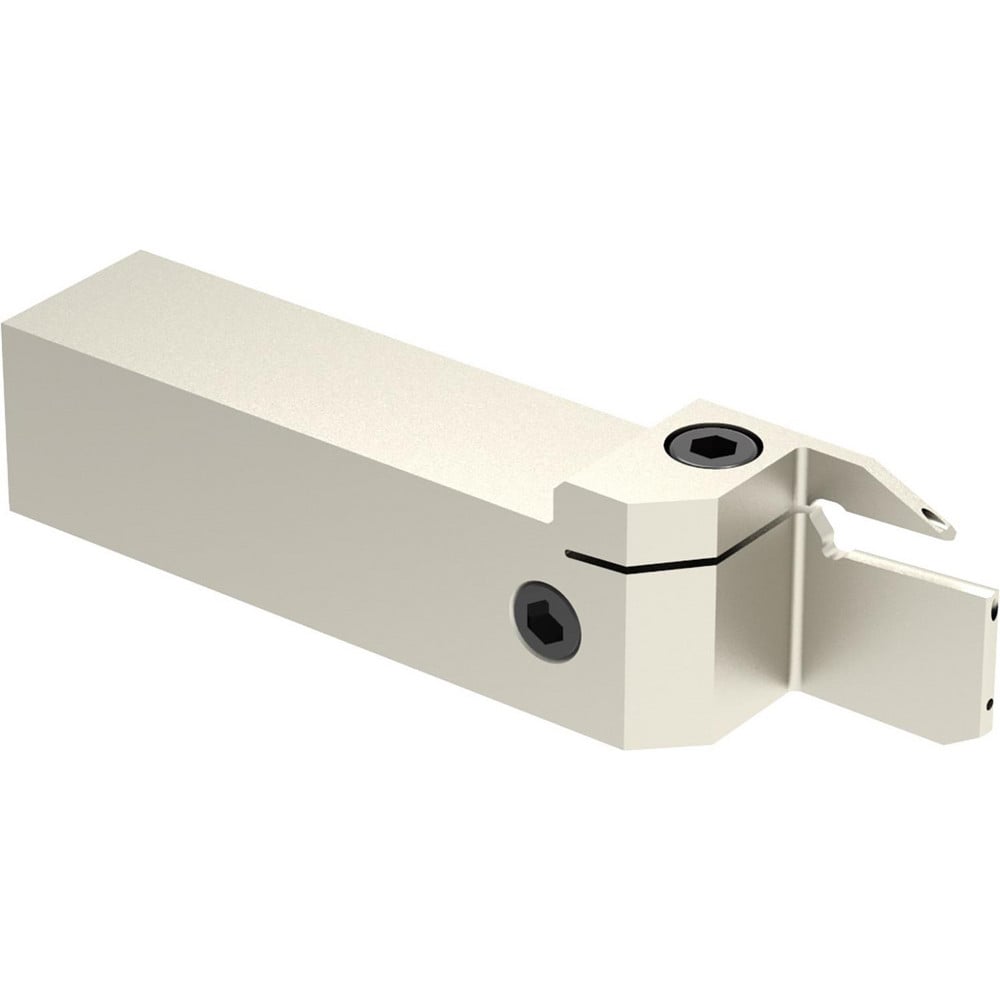

Indexable Grooving Toolholder: GMER0625GD24015CT23, External, Neutral & Left Hand, Right Hand, 0.0591" Max Groove Width
Item #: 40680027
Brand: Accupro
Model #: 40680027
Product Specifications
| Internal or External | External |
| Toolholder Type | External Grooving |
| Insert Seat Size | 24 |
| Hand of Holder | Left Hand |
| Cutting Direction | Right Hand |
| Maximum Depth of Cut (mm) | 23.00 |
| Minimum Groove Width (mm) | 1.50 |
| Maximum Groove Width (mm) | 1.50 |
| Toolholder Style | GMER |
| Maximum Groove Width (Decimal Inch) | 0.0591 |
| Insert Holding Method | Screw |
| Insert Compatibility | All GD24 style inserts with a width of 1.5mm |
| Compatible Insert Size Code | 015 |
| Shank Width (Decimal Inch) | 0.6250 |
| Shank Height (Inch) | 5/8 |
| Shank Height (Decimal Inch) | 0.6250 |
| Series | CI |
| Shank Length (mm) | 87.000 |
| Overall Length (mm) | 127.0000 |
| Overall Length (Decimal Inch) | 5.0000 |
| Center to Cutting Edge (mm) | 6.49 |
| Head Height (Inch) | 5/8 |
| Head Length (mm) | 23.00 |
| UNSPSC Code | 31161500 |
| Toolholder Material | Steel |
| Insert Hand | Left Hand, Right Hand; Neutral |
| Number of Inserts Included in Order | 0 |
| Coolant Through | No |
