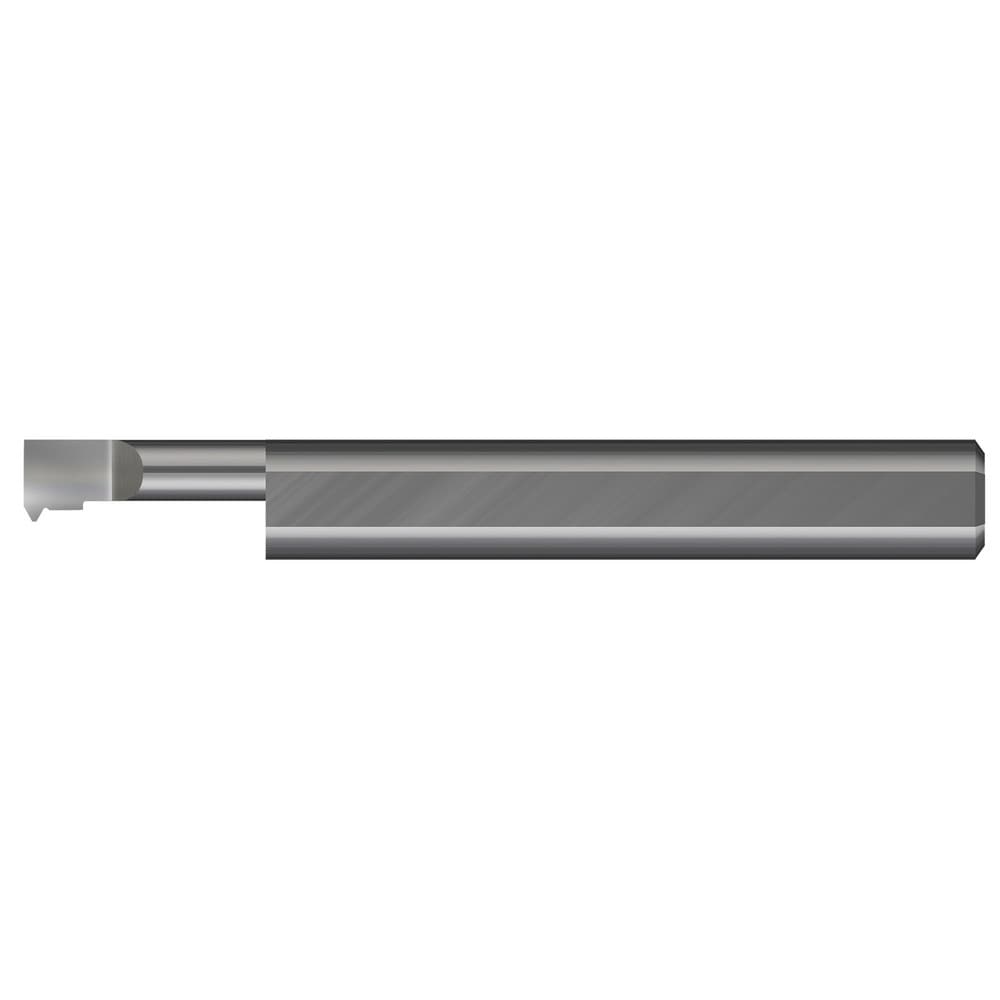

Single Point Threading Tools; Thread Type: Internal, External; Material: Solid Carbide; Profile Angle: 60; Threading Diameter (Decimal Inch): 0.0550; Threading Diameter (mm): 1.40; Cutting Depth (Decimal Inch): 0.1500; Maximum Threads Per Inch: 56
Item #: 78115946
Brand: Micro 100
Model #: TT-000256-015
Product Specifications
| Thread Type | Internal; External |
| Material | Solid Carbide |
| Profile Angle | 60 |
| Threading Diameter (Decimal Inch) | 0.0550 |
| Threading Diameter (mm) | 1.40 |
| Cutting Depth (Decimal Inch) | 0.1500 |
| Maximum Threads Per Inch | 56 |
| Minimum Threads Per Inch | 56 |
| Shank Diameter (Inch) | 1/8 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Thread Direction | Right Hand |
| Projection from Edge (Decimal Inch) | 0.0097 |
| Overall Length (Decimal Inch) | 1.5000 |
| Overall Length (Inch) | 1-1/2 |
| Coating/Finish | Uncoated |
| Coolant Through | No |
| UNSPSC Code | 23242117 |
| Country of Origin | UNITED STATES |
