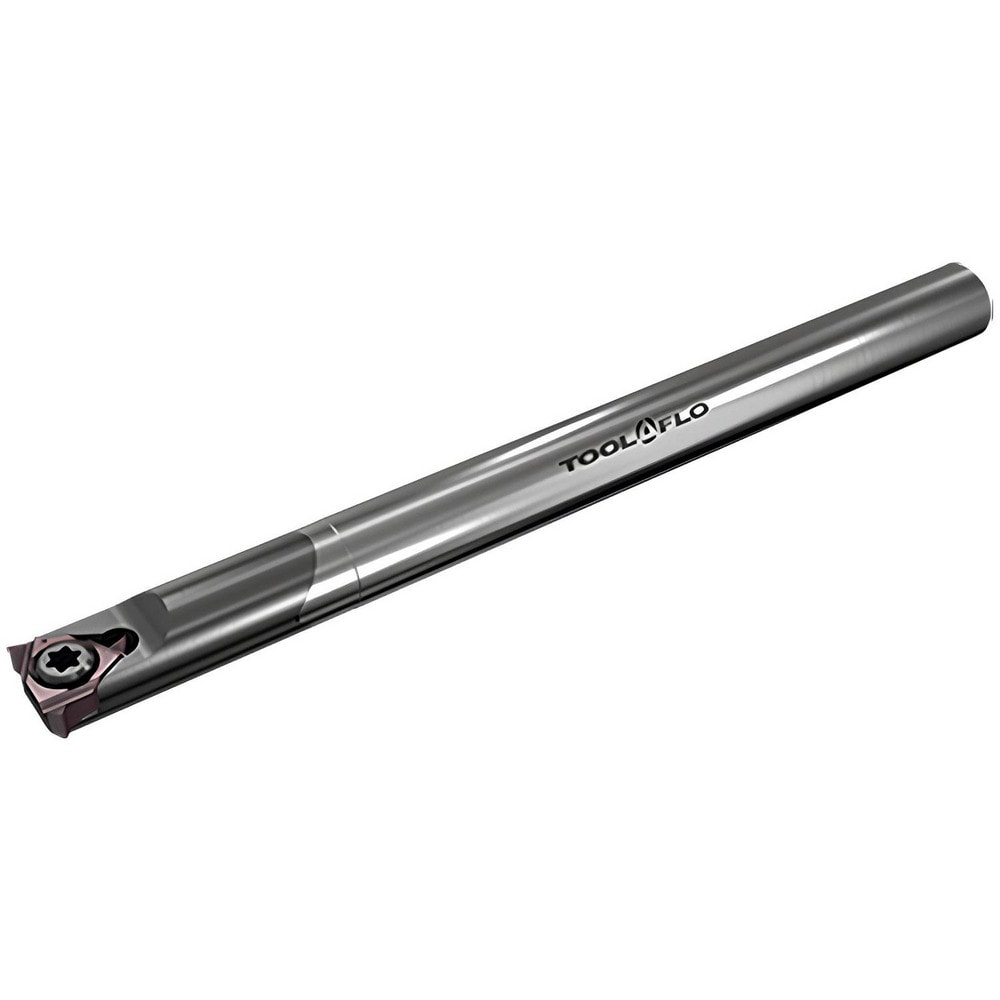

Indexable Thread Mills; Cutting Diameter (mm): 7.00; Compatible Insert Style: 06IR/EL; Insert Style: 06IR/EL
Item #: 03159209
Brand: Tool-Flo
Model #: 2462467
Product Specifications
| Cutting Diameter (mm) | 7.00 |
| Compatible Insert Style | 06IR/EL |
| Insert Style | 06IR/EL |
| Compatible Insert Size Code | 06IR/EL |
| Toolholder Style | Carbide Cutter Body with Coolant Supply |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 5.0000 |
| Insert Holding Method | Screw |
| Number of Threading Inserts | 1 |
| Overall Length (mm) | 63.0000 |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Cutting Direction | Right Hand |
| Toolholder Material | Carbide |
| Thread Type | Internal; External |
| Series | MT SERIES |
| Flute Type | Straight |
| Cutting Tool Application | Threading |
| Insert Inscribed Circle (Inch) | 5/32 |
| Tool Application | Thread Milling |
| Tool Performance | General Purpose |
| Number Of Flutes | 1 |
| Coolant Through | Yes |
| UNSPSC Code | 23291800 |
