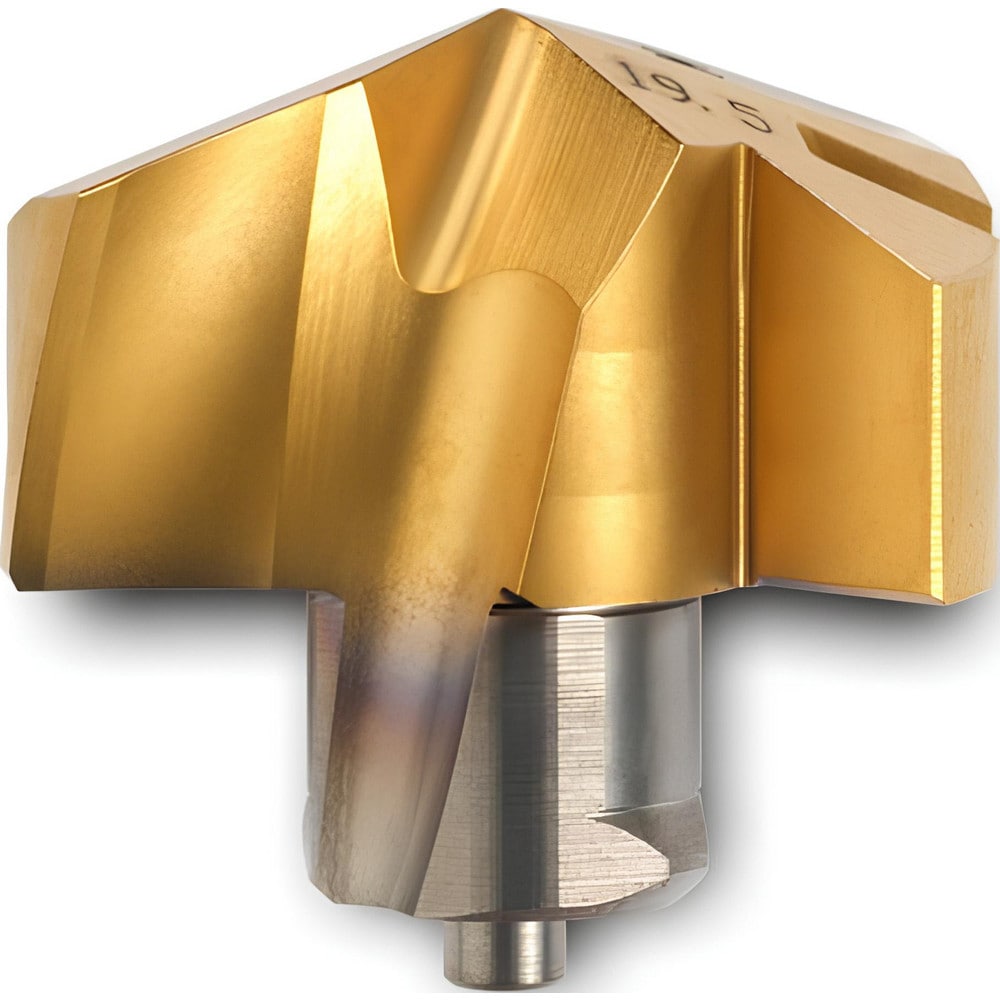

Brand: Ingersoll Cutting Tools / Part #: 5120142
Item #: 10476497
Brand: Ingersoll Cutting Tools
Model #: 5120142
Product Specifications
| Maximum Drill Diameter (mm) | 14.10 |
| Point Angle | 140.00 |
| Diameter (mm) | 14.1000 |
| Tip Material | Solid Carbide |
| Manufacturer Grade | IN2505 |
| Cutting Direction | Right Hand |
| Series | TMA |
| Coating Process | PVD |
| Insert Geometry | M |
| Insert Seat Size | 14 |
| Primary Workpiece Material | Hi-Temp Alloys; Stainless Steel |
| Primary Workpiece Material Code | S; M |
| Height (mm) | 8.1500 |
| Head Length (mm) | 8.15 |
| Cutting Diameter (mm) | 14.10 |
| Drill Point Angle | 140 |
| Flute Type | Helical |
| Insert Holding Method | Twist |
| ISO Number | TMA1410R01 IN2505 |
| Coolant Through | Yes |
| Flute Length (mm) | 6.02 |
| Point Type | Spiral Point |
| Overall Length/Projection (mm) | 8.15 |
| Spiral Type | Regular |
| Style | TMA |
| Coating Classification | PVD |
| Applications | Drilling |
| Coating/Finish | TiN; TiAlN |
| Included Angle Degree | 140 |
| Number Of Flutes | 2 |
