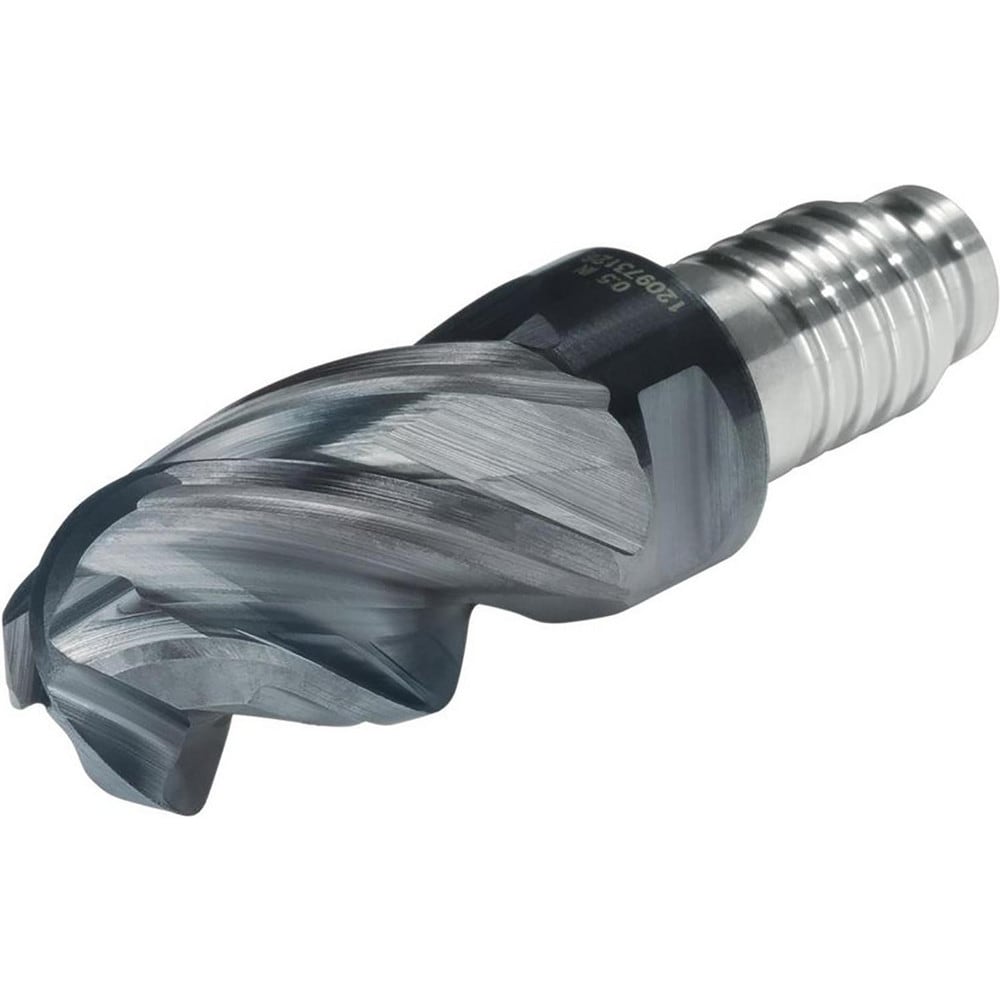

Ball End Mill Heads; Mill Diameter (mm): 10.00; Mill Diameter (Decimal Inch): 0.3937; Length of Cut (mm): 15.0000; Length Of Cut (Decimal Inch - 4 Decimals): 0.5906; Connection Type: Duo-Lock 10; Overall Length (Decimal Inch): 1.3780
Item #: 84772953
Brand: Kennametal
Model #: 7136718
Product Specifications
| Mill Diameter (mm) | 10.00 |
| Mill Diameter (Decimal Inch) | 0.3937 |
| Length of Cut (mm) | 15.0000 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.5906 |
| Connection Type | Duo-Lock 10 |
| Overall Length (Decimal Inch) | 1.3780 |
| Overall Length (mm) | 35.0000 |
| Material | Carbide |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Flute Type | Variable; Helical Flute |
| Helix Angle | 36 |
| Helix Style | Variable |
| Material Grade | Carbide |
| Maximum Helix Angle | 47 |
| Nose Radius (Decimal Inch) | 0.1970 |
| Series/List | Duo-Lock Harvi I TE |
| Undercutting | No |
| Number Of Flutes | 4 |
| Finish Coating | AlTiN |
| UNSPSC Code | 27112803 |
| Country of Origin | Israel |
