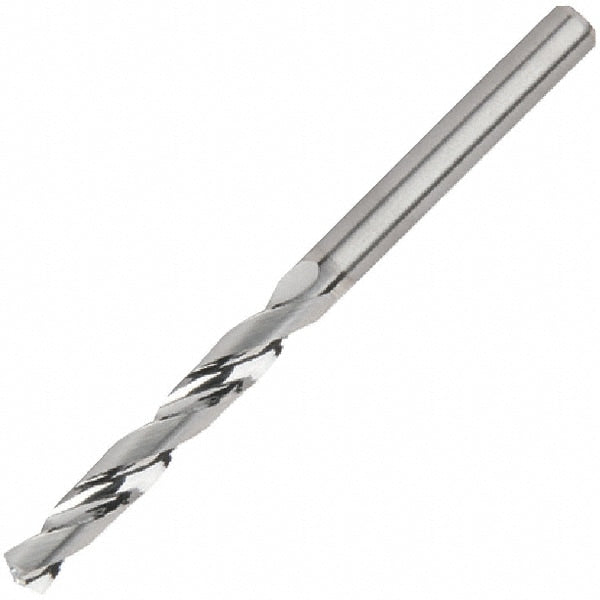

Jobber Drill: #21, 135 deg Point, Solid Carbide
Item #: 42638007
Brand: Kennametal
Model #: 5990913
Product Specifications
| Drill Bit Size (Wire) | #21 |
| Drill Bit Size (Decimal Inch) | 0.1590 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 135 |
| Coating/Finish | Bright/Uncoated |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Primary Workpiece Material | Aluminum & Non-Ferrous |
| Coolant Through | Yes |
| Number of Flutes | 2 |
| Overall Length (mm) | 74.00 |
| Overall Length (Decimal Inch) | 2.9134 |
| Flute Length (mm) | 36.00 |
| Flute Length (Decimal Inch) | 1.4173 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 6 |
| Maximum Drilling Depth (mm) | 29.00 |
| Shank Length (mm) | 36 |
| Drill Point Length (mm) | 0.75 |
| Drill Bit Diameter Tolerance | 0.0002 to 0.0006 in |
| Shank Type | 3-Flat |
| Drill Bit Grade | Specialized |
| Drill Bit Size Range (Decimal Inch) | 0.1500 - 0.2000 |
| UNSPSC Code | 23241634 |
