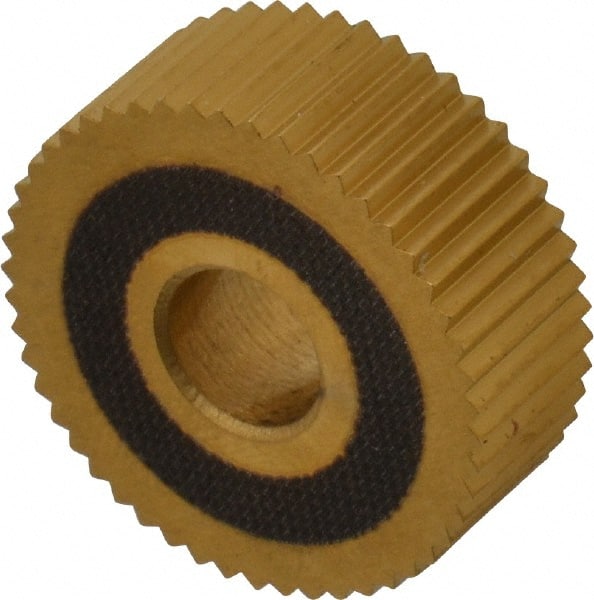

Standard Knurl Wheel: 1″ Dia, 90 ° Tooth Angle, 16 TPI, Straight, High Speed Steel 3/8″ Face Width, 5/16″ Hole, Series O
Item #: 64143779
Brand: Dorian Tool
Model #: 73310125610
Product Specifications
| Knurl Shape | Standard |
| Tooth Pattern | Straight |
| Pattern | Straight |
| Form Or Cut Type | Form |
| Material | High Speed Steel |
| Knurl Diameter | 25.40 |
| Knurl Diameter (Decimal Inch) | 1.0000 |
| Knurl Diameter (Inch) | 1 |
| Face Width (Inch) | 3/8 |
| Face Width (Decimal Inch) | 0.3750 |
| Hole Diameter (Inch) | 5/16 |
| Hole Diameter (Decimal Inch) | 0.3125 |
| Pitch System | Circular |
| Pitch (mm) | 1.60 |
| Pitch (TPI) | 16 |
| Included Tooth Angle | 90 |
| Finish | Bright |
| Pitch Type | Coarse |
| Knurl Series | O |
