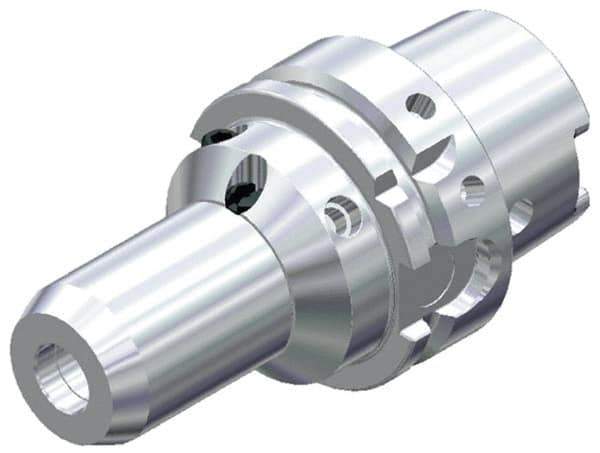

Kennametal - HSK100A Taper Shank, 1-1/4" Hole Diam, Hydraulic Tool Holder/Chuck - 59.94mm Nose Diam, 127mm Projection, 1.97" Clamp Depth, 15,000 RPM, Through Coolant
Item #: 63784987
Brand: Kennametal
Model #: 1246573
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | HSK100A |
| Hole Diameter (Inch) | 1-1/4 |
| Hole Diameter (Decimal Inch) | 1.2500 |
| Hole Diameter (mm) | 31.75 |
| Nose Diameter (Decimal Inch) | 2.3600 |
| Nose Diameter (mm) | 59.94 |
| Projection (Decimal Inch) | 5.0000 |
| Projection (mm) | 127.00 |
| Through Coolant | Yes |
| Clamping Depth (Decimal Inch) | 1.9700 |
| Overall Length (mm) | 177.04 |
| Overall Length (Decimal Inch) | 6.9700 |
| Balanced to (RPM) | 15000 |
